Mounting plate Screws(J)
Keep parallel to
door edge.
Install exterior assembly
3
STEP

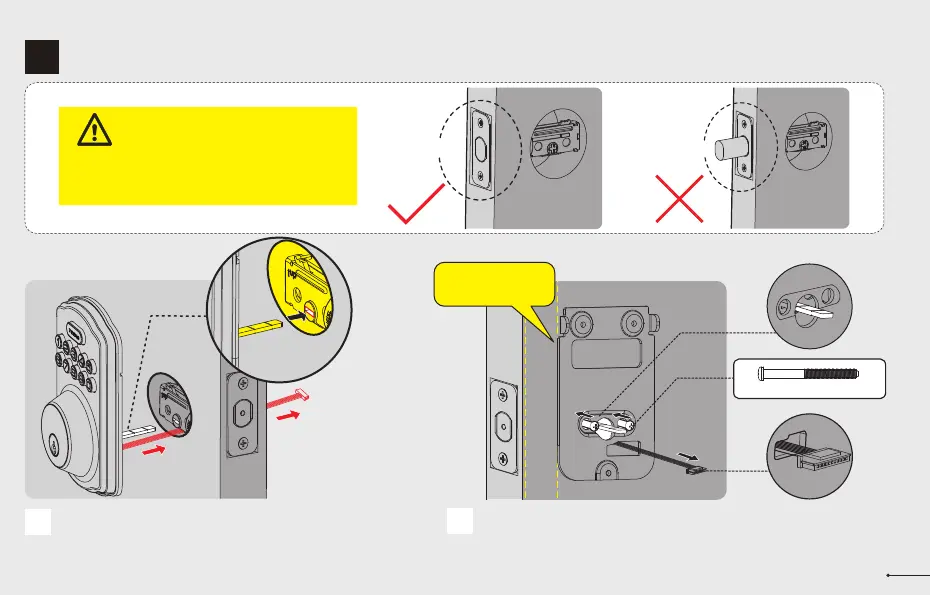

Before installation, make sure the latch is
fully retracted (in the unlocked position)
IMPORTANT:
With the latch fully retracted (in the unlocked
position), route the cable below the latch, and
insert the torque blade through the slot in the
latch.
10
Torque
blade
Secure the mounting plate with the
supplied screws. Do not overtighten
screws.
