Door thickness:
1-3/8" to 2"
(35mm to 50mm)
2-1/8"
(54mm)
3/8"
(10mm)
8" to 9"
(205mm to 230mm)
1"
(25.4mm)
Backset:
2-3/8" or 2-3/4"
(60mm or 70mm)
>4-3/8"
(>110mm)
1. Prepare the door
and check dimensions
Installation Instructions
of Handleset
Handleset
TOOL REQUIRED:
Do not use an electric screw-
driver during installation.

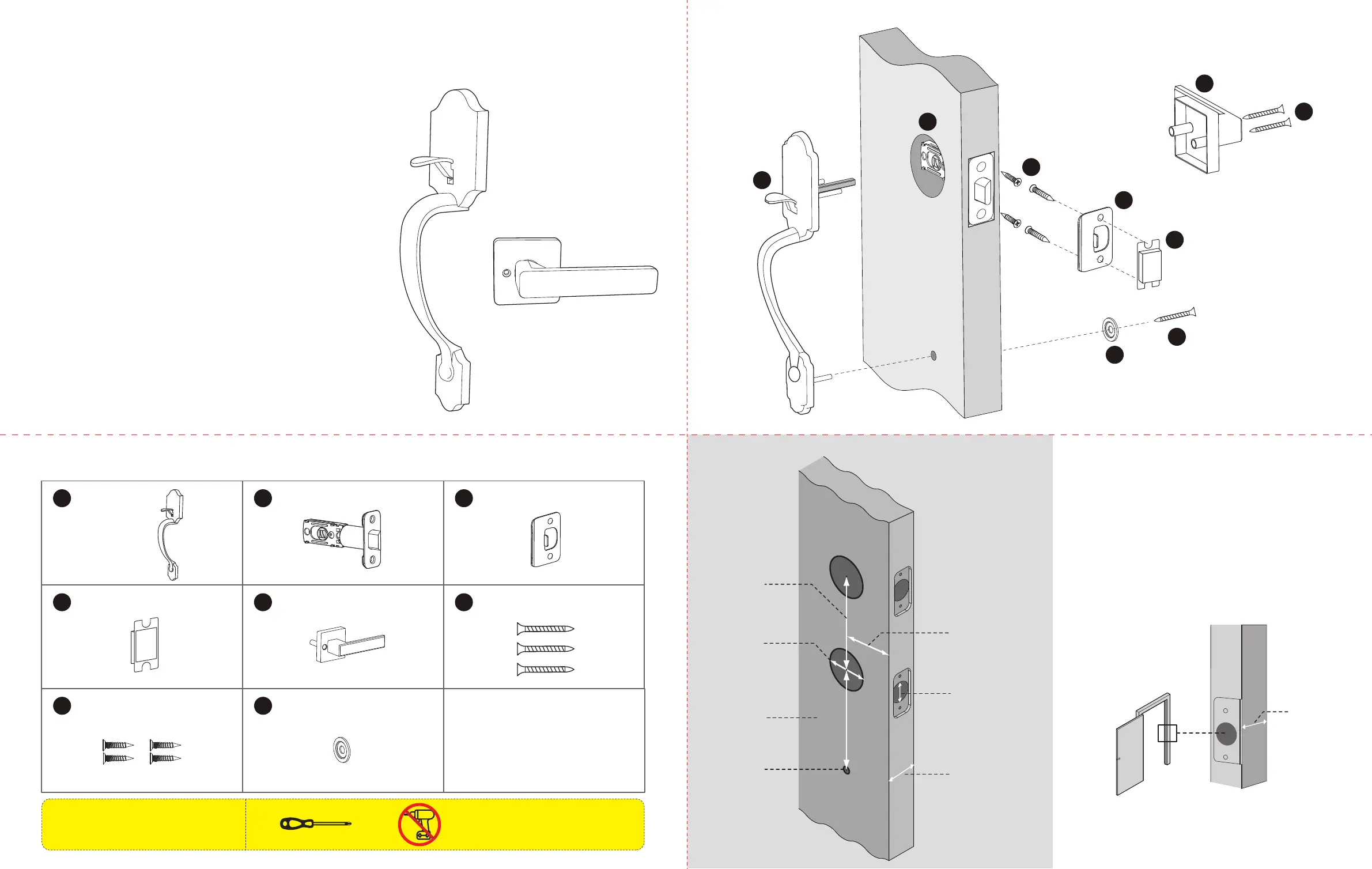

Parts list
Latch x1
A
Strike x1
B
Dust Cover x1 (optional)
C
Handle Lever x1
D
Handleset x1
E
Handle Lever
& Handleset screws x3
F
Latch&Strike screws x4
G
Spacer x1
H
Thank you for purchasing our products. Please review this manual thoroughly before operating your
device. All pictures in this manual are for illustration purpose only. Actual product may vary due to
product upgrade.
G
A
B
H
C
D
E
F
F
Make sure the hole in the door frame is drilled
a minimum of 1/2’’ (12.7mm) deep, to leave
enough space for the latch to extend into the
door frame when the door is closed.
Depth:
1/2"
(12.7mm)
