An additional valve (in accordance with water installation regulations)
should be connected to close the device inlet water at a suitable place of
water installation for device maintenance and repair.
The device is approved for heating waters with electricity resistance
15°C ≥ 1300 Ωcm. Electricity resistance of your water can be learnt from
the authorized water distribution authority.
The water inlet tap, water outlet sleeve and sealing gaskets given with the
device must be used during installation of the device to closed-circuit
installation. Do not use different gasket materials for sealing in any
connection.

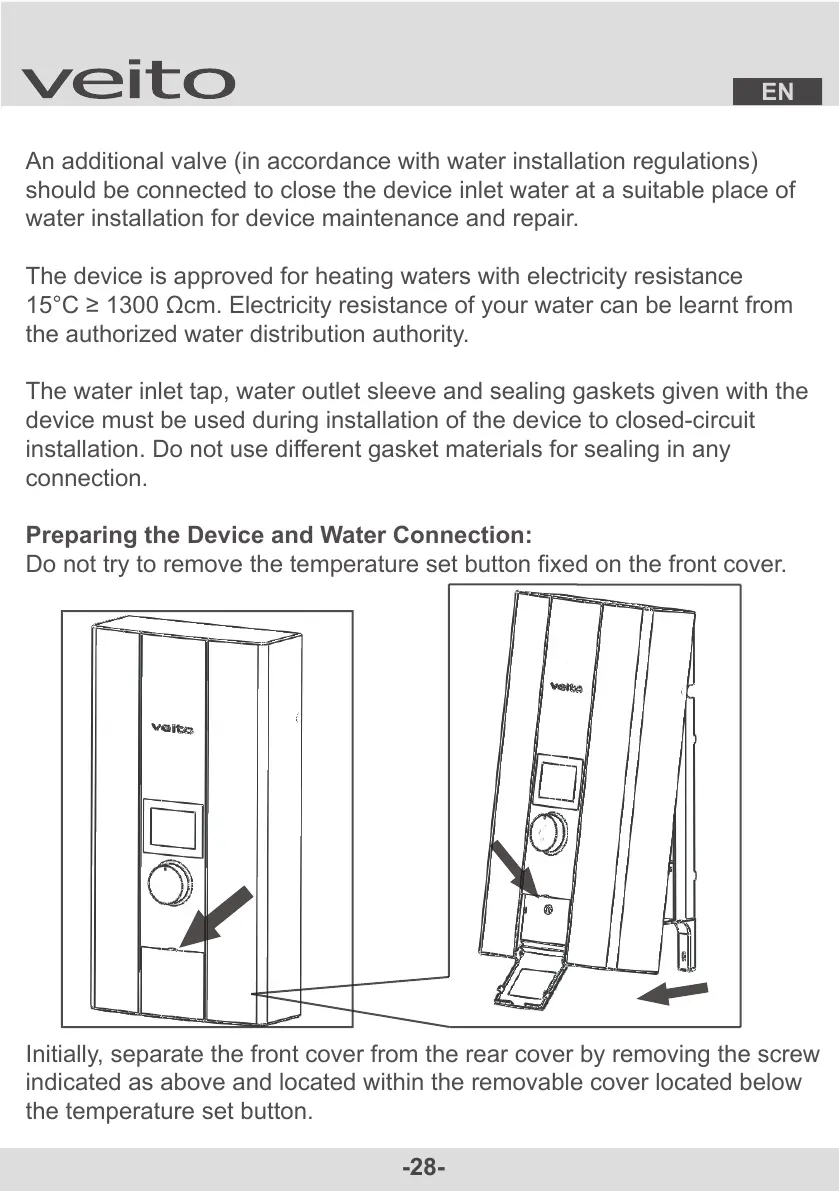

Preparing the Device and Water Connection:
Do not try to remove the temperature set button fixed on the front cover.
Initially, separate the front cover from the rear cover by removing the screw
indicated as above and located within the removable cover located below
the temperature set button.
