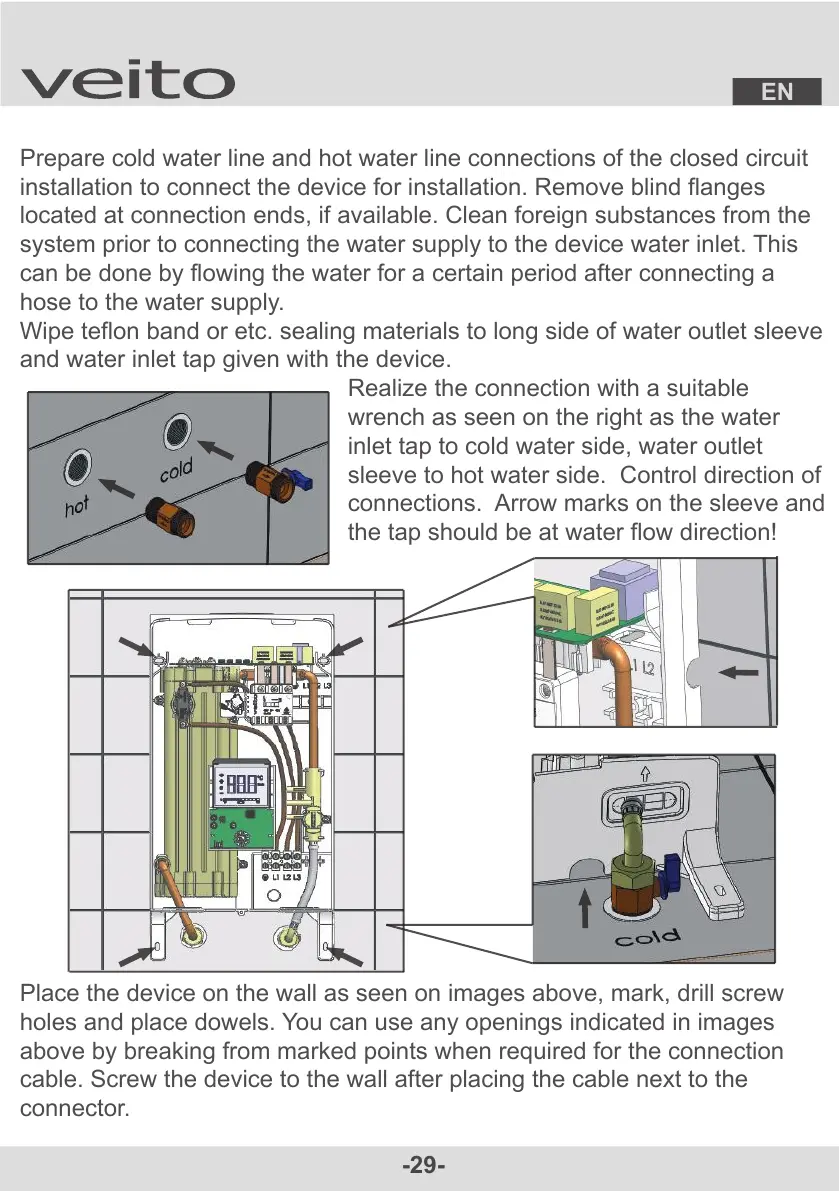

Prepare cold water line and hot water line connections of the closed circuit
installation to connect the device for installation. Remove blind flanges
located at connection ends, if available. Clean foreign substances from the
system prior to connecting the water supply to the device water inlet. This
can be done by flowing the water for a certain period after connecting a
hose to the water supply.
Wipe teflon band or etc. sealing materials to long side of water outlet sleeve
and water inlet tap given with the device.
Realize the connection with a suitable
wrench as seen on the right as the water
inlet tap to cold water side, water outlet
sleeve to hot water side. Control direction of
connections. Arrow marks on the sleeve and
the tap should be at water flow direction!
Place the device on the wall as seen on images above, mark, drill screw
holes and place dowels. You can use any openings indicated in images
above by breaking from marked points when required for the connection
cable. Screw the device to the wall after placing the cable next to the
connector.
