Velleman ARDUINO VMA307 - Product Overview and Specifications; Arduino Connection; Technical Specifications; Programming the RGB LED Module

VMA307
V. 01 – 28/11/2016 3 ©Velleman nv
4. Overview

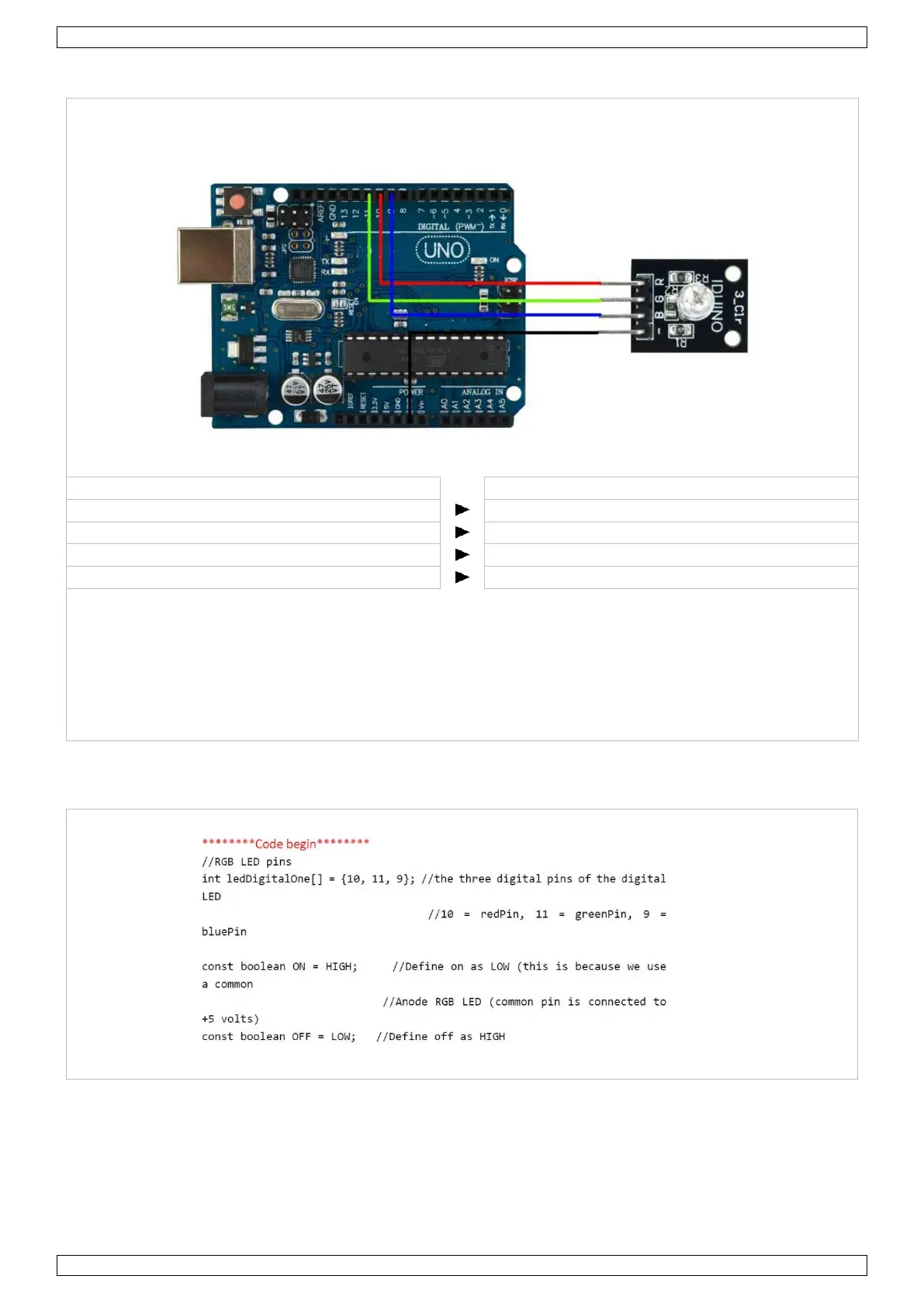

The VMA307 is an RGB LED module with on-board current limiting resistors.
Arduino®
VMA307
D11
R
D10
G
D9
B
GND
-
voltage ..................................................................................................................... 5 VDC
connection ............................................................................................... 4-pin male header
pins names .................................................................................... GND, RED, GREEN, BLUE
dimensions ............................................................................................... 24 x 16 x 16 mm
weight .......................................................................................................................... 2 g
5. Programming Code
