DCM269/DCM270 VELLEMAN
Range Specifications
Function Range Resolution Accuracy
DC current 200A 200mA ± (2.8% + 8 digits)
AC current (50/60Hz) 200A 200mA ± (3.0% + 8 digits)
40-51Hz 0.01Hz
51-510Hz 0.1Hz
Frequency
(auto-ranging)
0.51-1KHz 0.001KHz
± (1.2% + 5 digits)
input sensitivity
5A AC RMS min.
Non-contact voltage 100Vac to 600Vac 50/60Hz

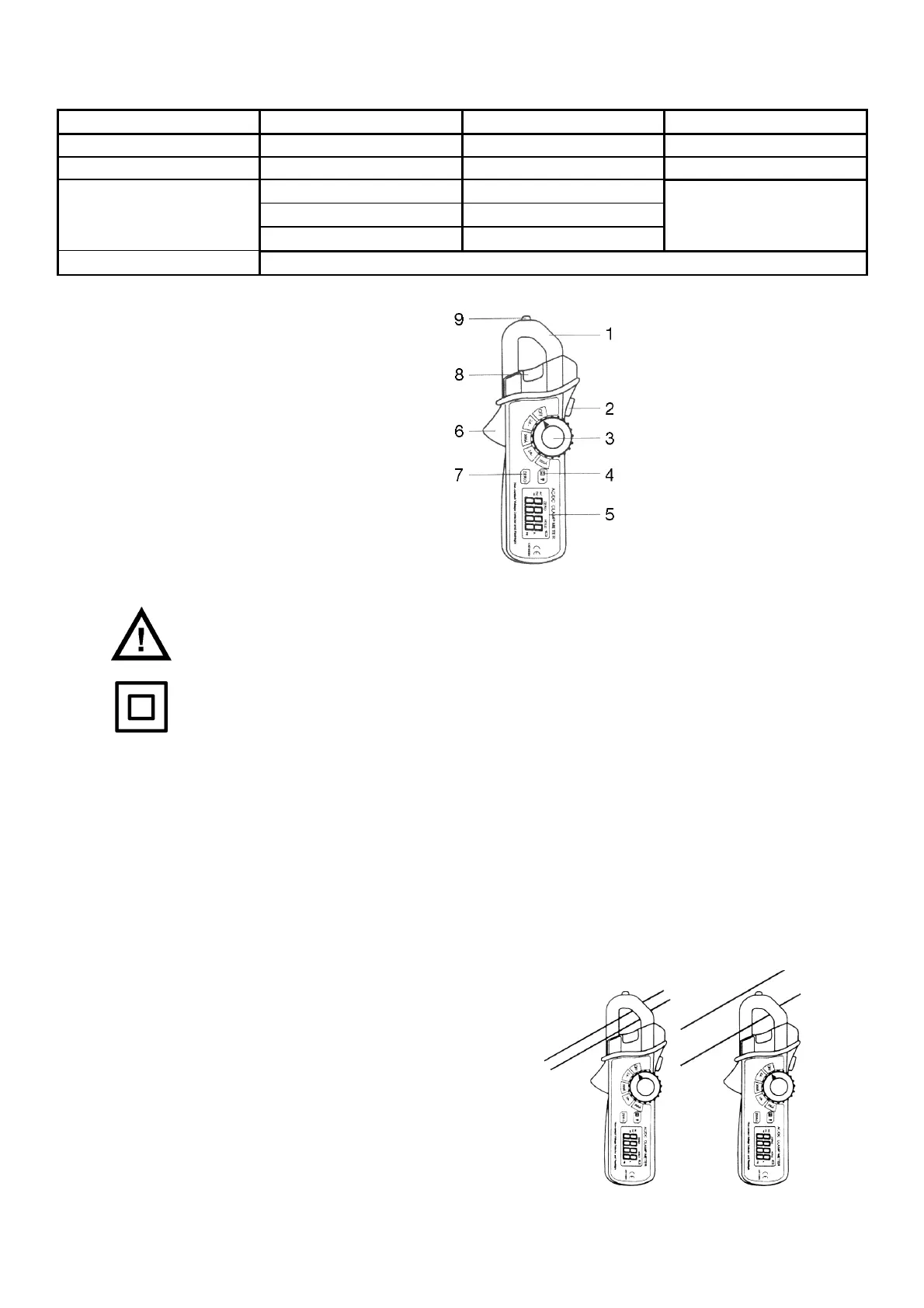

4. Description
1. Jaws
2. Flashlight button
3. Rotary function switch
4. Data-hold and backlight button
5. LCD display
6. Trigger
7. DCA ZERO key
8. Non-contact AC voltage detection LEDs
9. Probe tip
5. Safety
This meter has been designed with attention to safety, but the user must also take care to respect the safety
prescriptions described below.
1. Do not exceed the maximum values for current or voltage measurements.
2. Use extreme caution when working with voltages in excess of 25V AC rms. These voltages are considered a
shock hazard.
3. Never operate the device if the back panel or the cover of the battery or fuse compartment is not securely in
place.
4. Input limits: 200A (AC current), ±200A (DC current)
6. Operation
a) AC Current Measurements
1) Set the function switch to the ACA range.
2) Press the trigger and enclose a single conductor with the jaws,
which must be fully closed (see figure).
3) Read the ACA value on the LCD.
Important information with reference to safety, consult the manual
Double insulation
