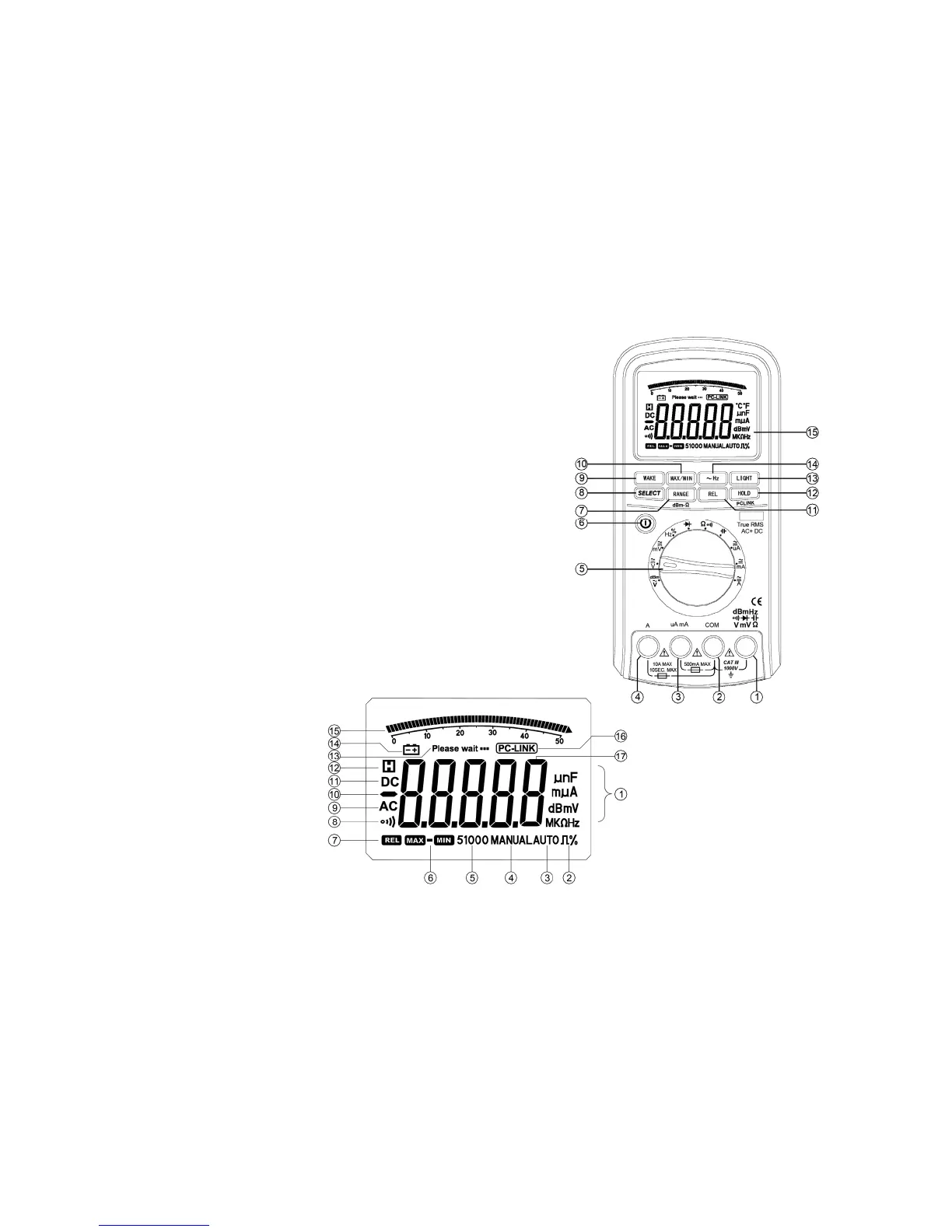

3. Description
a. Multimeter
1. V/Ω/Hz terminal
2. COM terminal
3. µA/mA terminal
4. A terminal
5. rotary selection switch
6. power switch
7. RANGE: range selection key
8. SELECT: measuring mode selection key
9. WAKE: meter reactivation key
10. MAX/MIN: maximum/minimum value display selection key
11. REL: relative measuring key
12. HOLD: data-hold key
13. LIGHT: backlight key
14. ~Hz: linear frequency measurement
15. LCD display
b. LCD Display
