6

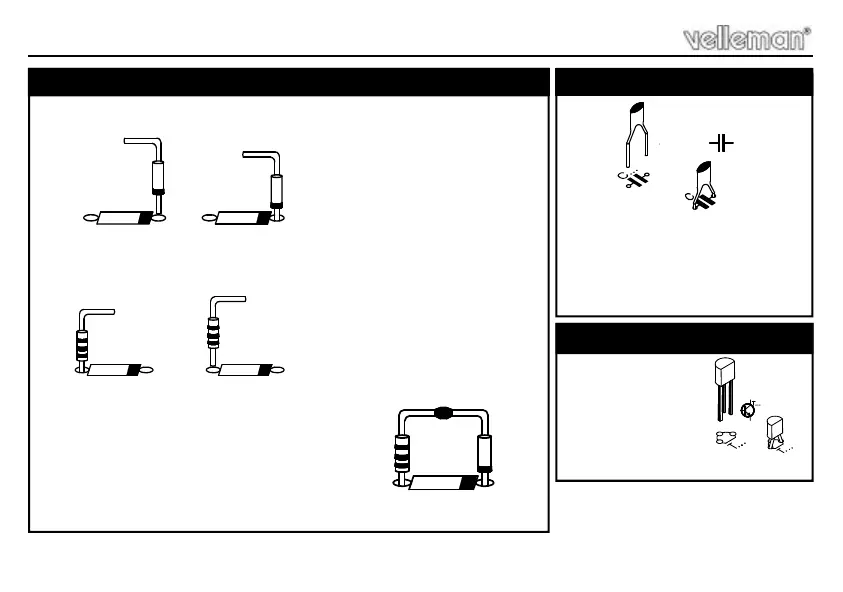

Fit the diode D8 vertically and with one lead connected for the present.
D8 : 1N4148
Mount one side of R16 vertically on the anode side of D8.
R16 : 470
Then connect the free extremities of each diode-
resistor pair together and cut them.
Construction & connection
C1 : 22pF (22)

C2 : 100nF (104)
C3 : 100nF (104)
C4 : 100nF (104)
7. Capacitors.
T1 : BC557B
T2 : BC557B
T3 : BC557B
T4 : BC517
8. Transistors.
C...
6. Correction network
D
8
D8
D
8
D
8
D
8
