VM130USER MANUAL
1
NO COM NC NO COM NC
3
2
4
5
6
CH2
CH1
POWER
COM
COM
OFF
OFF
NC
NC
NO
NO
ON
ON
9 - 13
AC/DC

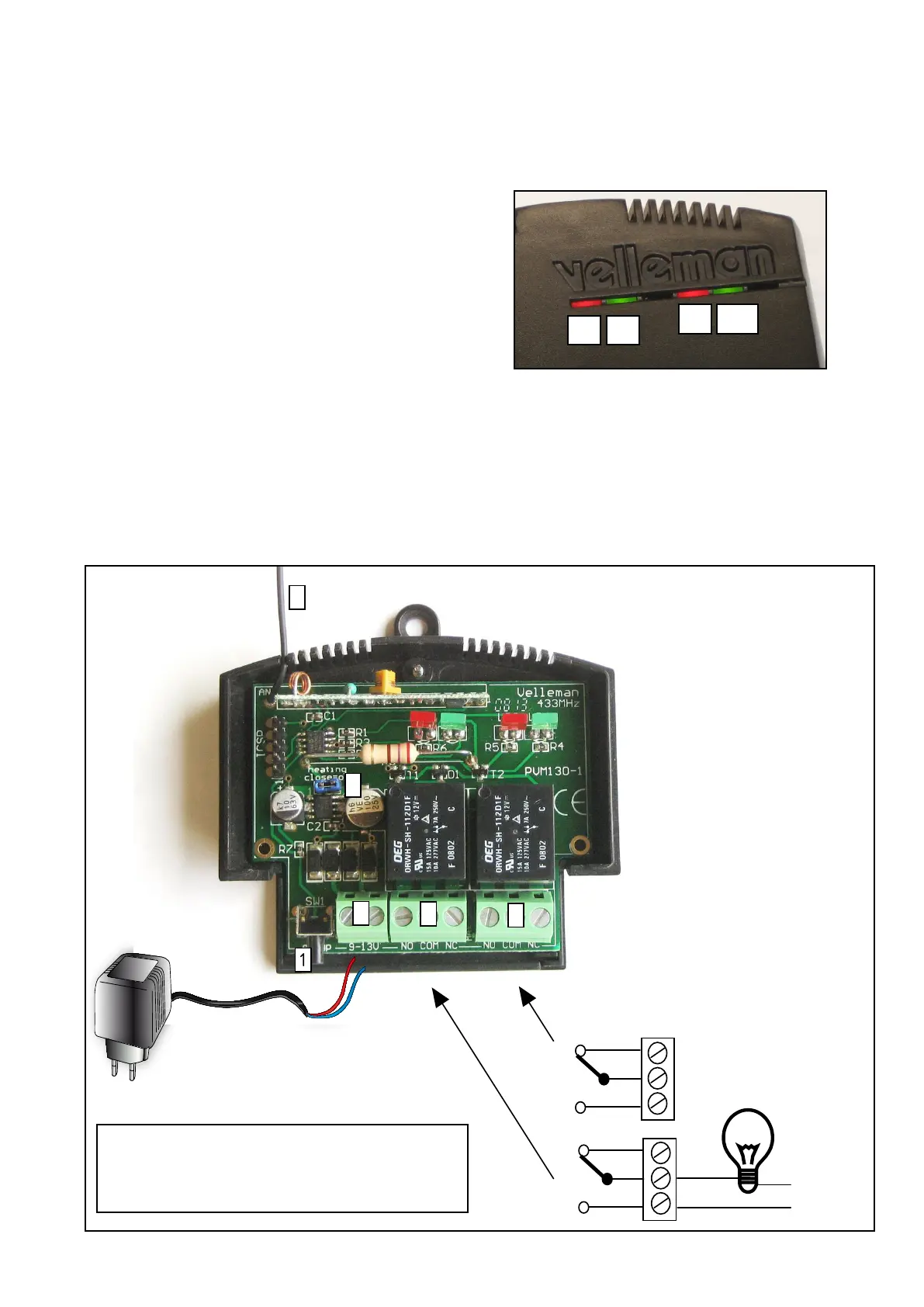

Description
1. ‘Setup’ button
2. 9 to 13Vac or 10 to 15Vdc input
3. Channel 1 output
4. Channel 2 output
5. Heating ON/OFF selection jumper
6. Antenna
7. Channel 1 indication
8. Mode / timer indicator CH1
9. Channel 2 indication
10. Conrm / timer indicator CH2
Disconnect relay outputs during setup!
Any type of power can be used, AC or DC,
the maximum current is 130mA.
The polarity is not important.
7 8
9
10
Do not mount the unit in the proximity of other electronic devices or metal objects.
Straighten the antenna !
