Vello shutterboss II User Manual

TIMER CONTROLS
SHUTTER CONTROLS
CH
BATT
2
Continuous shooting under the Shutter
Control settings will trigger the camera
shutter once every second. For exposures
longer than one second, use the Timer
Control settings described later in this
manual.
. Turn on the receiver by pressing and
holding the Power button.
2. Set your camera to single shot mode.
3. Use the arrow button on the transmitter
to select continuous shooting mode.
Press the left and right arrows until
the continuous shooting icon is
displayed at the bottom.
4. Press the transmitter’s shutter release
button halfway to wake or focus your
camera (if set to Auto Focus). The LEDs
on the transmitter and receiver will both
turn green.
5. Fully depress and hold the shutter
release button on the transmitter. The
LEDs will turn red and the shutter will be
triggered. The LEDs will blink green and
red as shots are focused and triggered.
6. Release the shutter release button to
stop continuous shooting.
SHUTTER CONTROL: CONTINUOUS SHOOTING

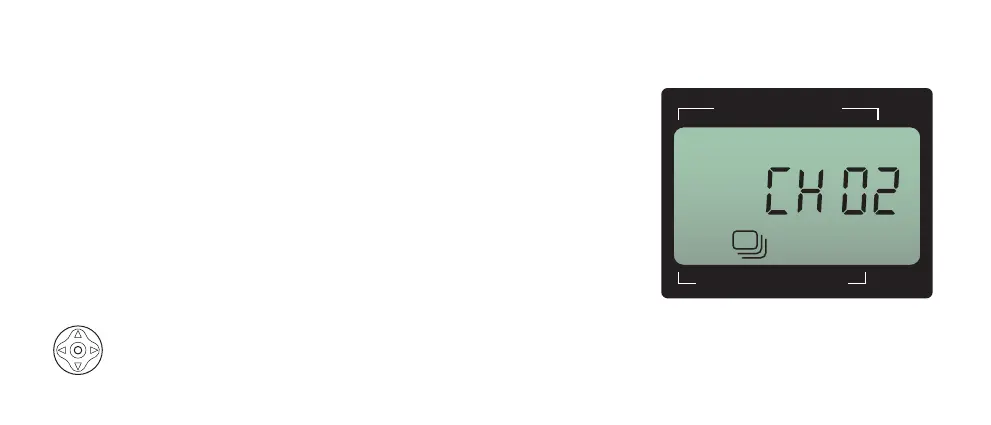

In continuous shooting mode, only the multiple
shot icon and the channel in use will display.

Vello shutterboss II Specifications

General

Supported Cameras	(See enclosed insert)
Exposure Range	0s to 99hr 59min 59s in one-second increments
Number of Shots	1-999 or ∞
Frequency	99 selectable channels over FSK 2.4 GHz
Range	250 feet (80 meters)
Timer Control: Delay	0s to 99hr 59min 59s in one-second increments
Interval	1s to 99hr 59min 59s in one-second increments
Operating Temperature	−4° to +122°F (−20° to +50°C)

Weight and Dimensions

Dimensions (Transmitter)	5.9" × 2" × 1" (149 × 50 × 24 mm)
Dimensions (Receiver)	2.5" × 1.5" × 1.2" (63 × 38 × 31 mm)
