VELTIUM LITE Zero - Installation of the Curve Device

20
INSTALLATION
MANUAL
INSTALLATION
INSTALLATION OF THE CURVE DEVICE
The CURVE device is designed for use with the LITE Zero/Uno charger.

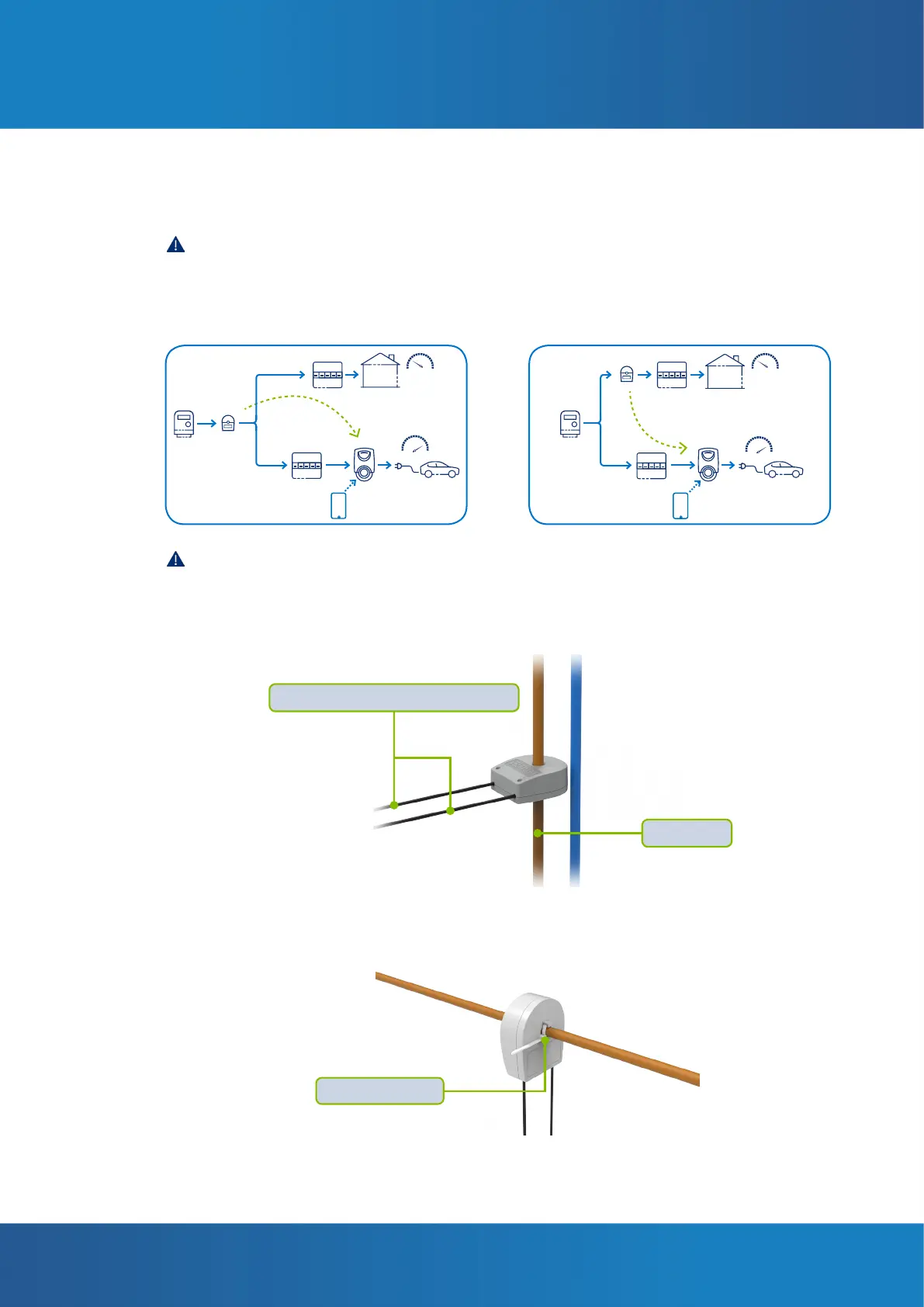

1. Select the circuit onto which you want to install the CURVE device.
Operation of the CURVE device is independent from the direction of the active
phase current passing through it
2. Install the CURVE device in the active phase of the circuit you wish to measure
(general or home).
Connection cables with
charger
Active
phase
3. Attach the CURVE device to the cable using the mounting ange.
Mounting
ange
METER
Contracted
power
Electric
vehicle
power
CURVE
Home
power
PANEL
PANEL
At the meter outlet In the home circuit
Home
power
CURVE PANEL
PANEL
Electric
vehicle
power
METER
Contracted
power
