PREPARE THE CONNECTIONS

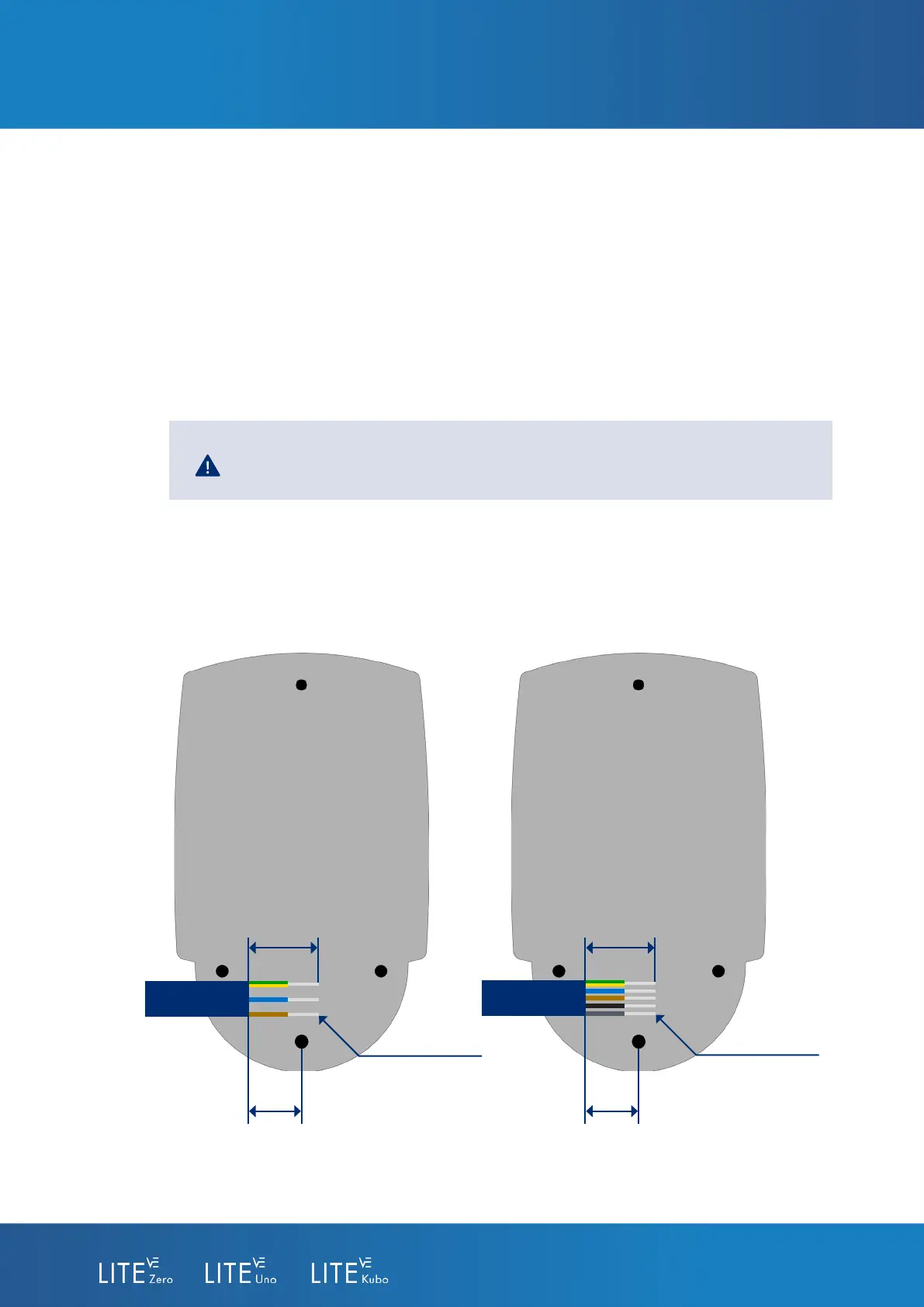

Following the template indications, proceed with the following steps:
1. Place the tube for the power supply wiring at the indicated height.
2. Cut and strip the cables to the recommended length.
3. Fit the ferrules.
20 mm
hollow crimp
ferrule
5.5 cm
Connection tube
25 cm
Lite Zero/Uno
20 mm
hollow crimp
ferrule
5.5 cm
Connection tube
25 cm
Lite Kubo
3- INSTALLATION
Always use an appropriate tool (crimper) to avoid poor connections
likely to cause overheating in the connection terminals.
