Venitem MINI DOGE - Sound Timing and Adjustment; Sound Timing Selection (DIP 5); Sound Pressure and Power Adjustment

TECHNICAL MANUAL
13
SOUND CHART
SOUND MODULATION MODULATION LIMITS (Hz)
Sound 1 Trapezoidal (CERTIFIED) 1,200 – 2,300
Sound 2 Increasing – decreasing 1,800 – 3,900
Sound 3 Pulsed (softened) 1,600
Sound 4 Two tones 1,800 – 3,800
Sound 5 Continuous 1,600
Sound 6 Pulsed 1,800
Sound 7 Increasing-Stable-Decreasing-Stable 1,400 – 1,600
Sound 8 Pulsed fast 1,800
96.3 dB

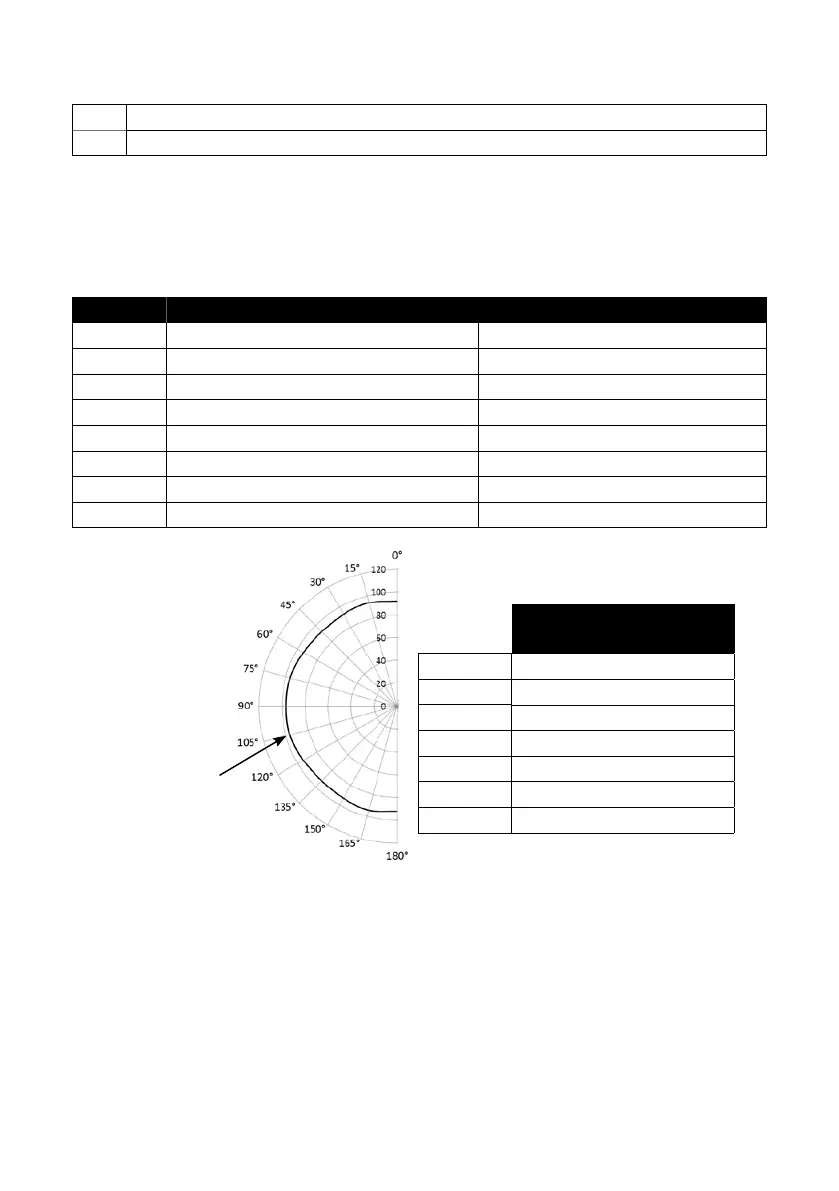

DIAGRAM 1
MINI DOGE - MINI DOGE L
SOUND 1
Angle dB (A) @ 1 m
15° 93.7
45° 92.2
75° 96.0
105° 96.3
135° 92.3
165° 94.2
DIP 5 – SOUND TIMING SELECTION
OFF
The alarm duration follows the trigger (default setting)
ON
Acoustic notice lasts 8 minutes, the flashing unit (L model only) follows the trigger
SOUND PRESSURE AND POWER CONSUMPTION ADJUSTMENT
Turn P1 TRIMMER to adjust the acoustic power and the power consumption of the device.
