Venta Airwasher LW15 - Maintenance and Care

8
MOTOR HOUSING ARMS
GEAR (SLIGHTLY DIFFERENT FOR LW
44 Plus)
COUPLING
LOCKING RING
FAN BLADE
MOTOR
HOUSING
3
4
6
4
3
5
7
1 Switch the motor off and unplug the switch-
ing power supply.
2 To open upper housing unit for easy access
to components, simultaneously press both
tabsnexttothespeedcontrols;“One-Click
Technology”unlockstheupperhousing.
3 Lower the 2 short (solid) sides.
4 Lower the 2 long (vented) sides.
5 Remove main cable connector from drive unit.
6 Using both hands, gently lift out
the motor housing.
7 Remove main cable from holder and
pull out through opening in the upper
housing.

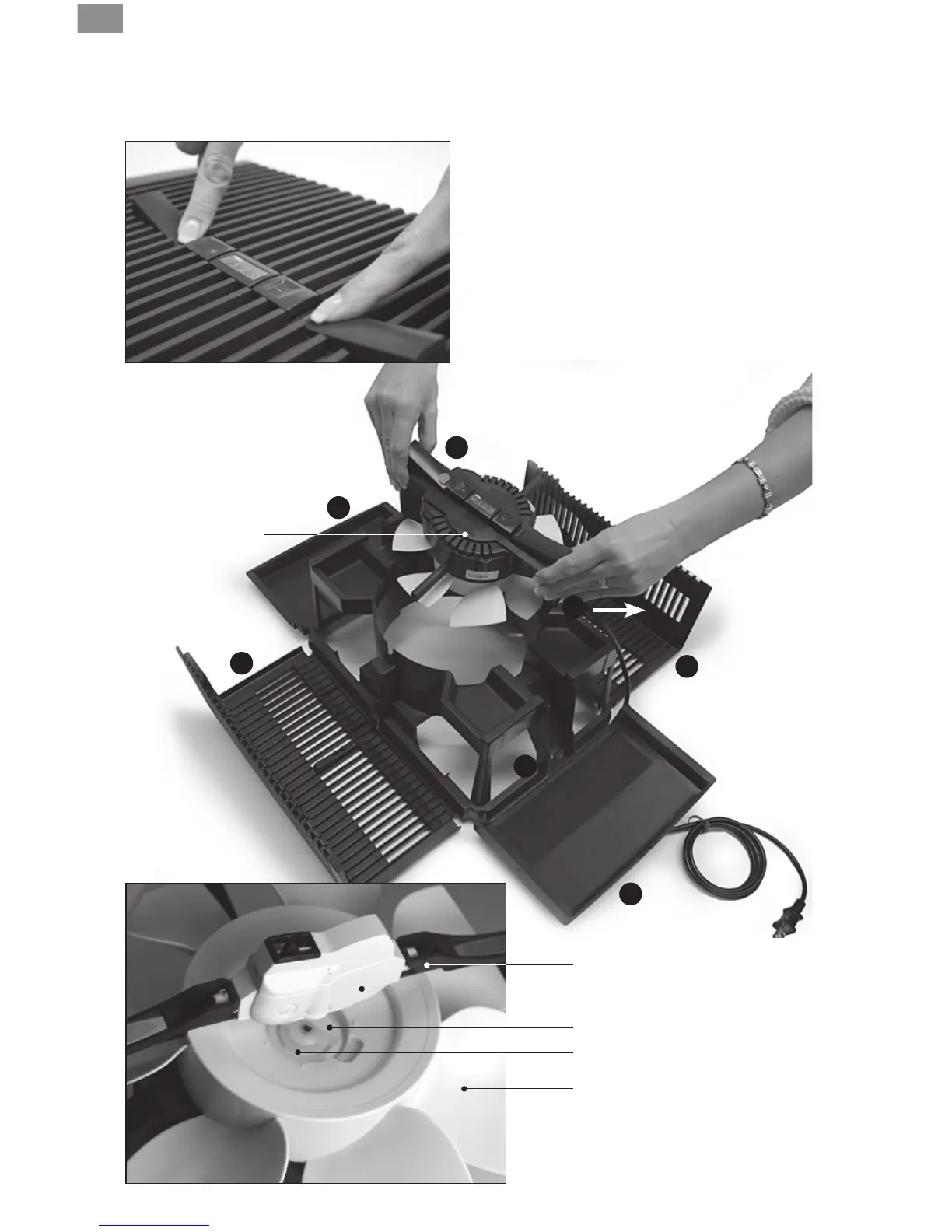

MAIN COMPONENTS OF THE VENTA AIRWASHER
– EASY ACCESS FOR CLEANING
