6
sonar sensor and the water will cause the unit to operate
incorrectly.
Note: The depth is measured from the sonar sensor, not
the float(water surface).
Water Temperature
The Temperature readout on the upper left corner of the
screen will appear after the power is turned ON and the
Sonar Sensor is placed in water. The readout is incorrect
if the Sonar Sensor is not in water.

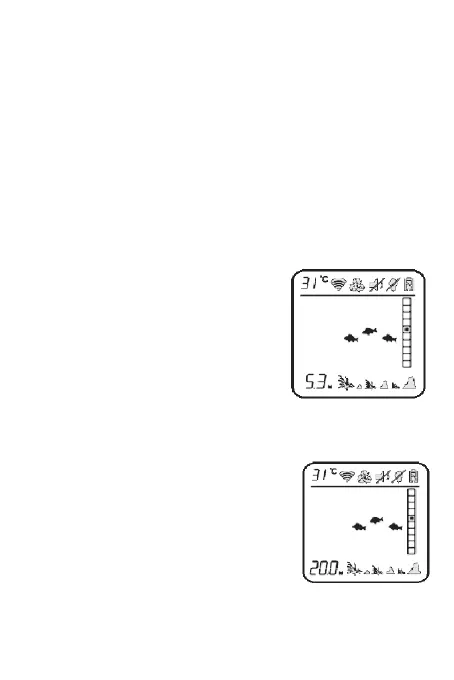

Fish Location
If the fish finder determines that sonar has detected a fish,
the display will show a fish shaped
icon. The first column of fish
indicators on the right of the
display shows the most current
information. This icon is then
moved to the left as a new reading
is displayed. This motion in no
way reflects actual movement of
the fish.
Fish Depth
How to figure out the depth of the
fish? This can be done by dividing
the depth reading by 10.
For Example: The depth is 20M, the
fish icon appears in the 5th box from
the top. This means the fish is 10M
from the Sonar Sensor.
Weeds Indicator
