Installation and Operation Requirements - HES140
ENGLISH

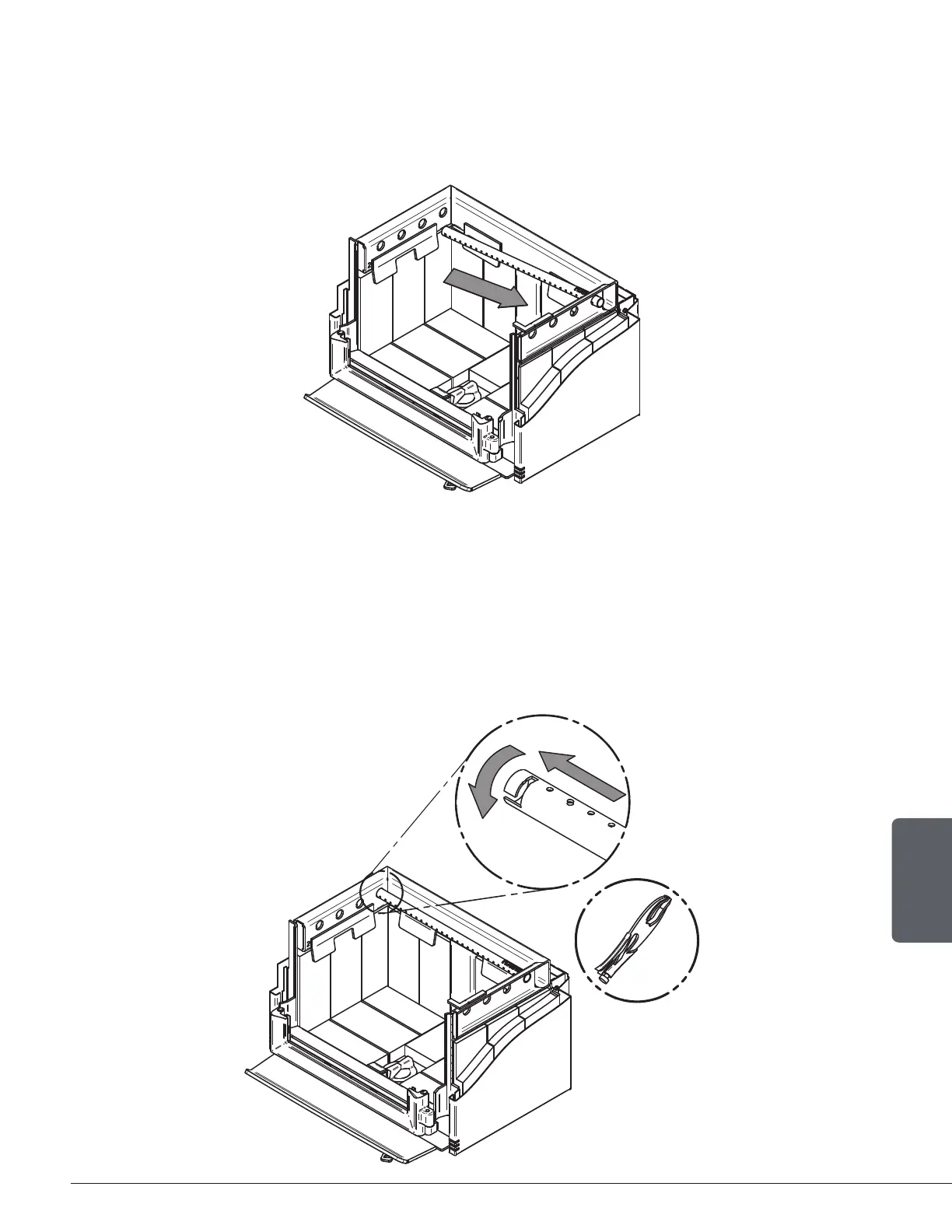

6.4 Air Tubes And Baffle Installation
1. Starting with the rear tube, lean and insert the right end of the secondary air tube into the rear
right channel hole. Then lift and insert the left end of the tube into the rear left channel.
2. Align the notch in the left end of the tube with the key of the left air channel hole. Using a Vise grip hold
the tube and lock it in place by turning the tube as shown. Make sure the notch reaches the
end of the key way.
3. Put the baffle in place.
4. Repeat steps 1 and 2 for the three other tubes.
5. To remove the tubes use the above steps in reverse order.
