Heaters EKA with integrated temperature controller EKR-KN… (See Fig. 11) can be controlled in
five different ways depending on control type:
Type EKA NV – potentiometer on the top of the heater casing for temperature control
Type EKA NI – external wired remote setpoint knob (TR5K) for temperature control
Type EKA NIS – external wired remote 0…10V signal for temperature control
Type EKA ESKM – external wired remote PWM (ON/OFF: ON(6…24)VDC) signal for temp. control
Type EKA MB – external wired remote temperature control via Modbus RTU protocol (RS485)
Electrical duct heaters EKA with integrated temperature controller EKR-KN… works by PID
regulator. That enable fine temperature control. Controller EKR-KN… controls load by Triacs without
moving parts, which causes no-noise commutation.
Table 1. Technical characteristics of controller EKR-KN...
Power supply depending on model
single phase 230V / 2 - phase 400V / 3 - phase 400V
Power consumption in standby mode
0,1VA
Ambient temperature
0...50 °C
Relative humidity
Max. 90 % RH (non-condensing)

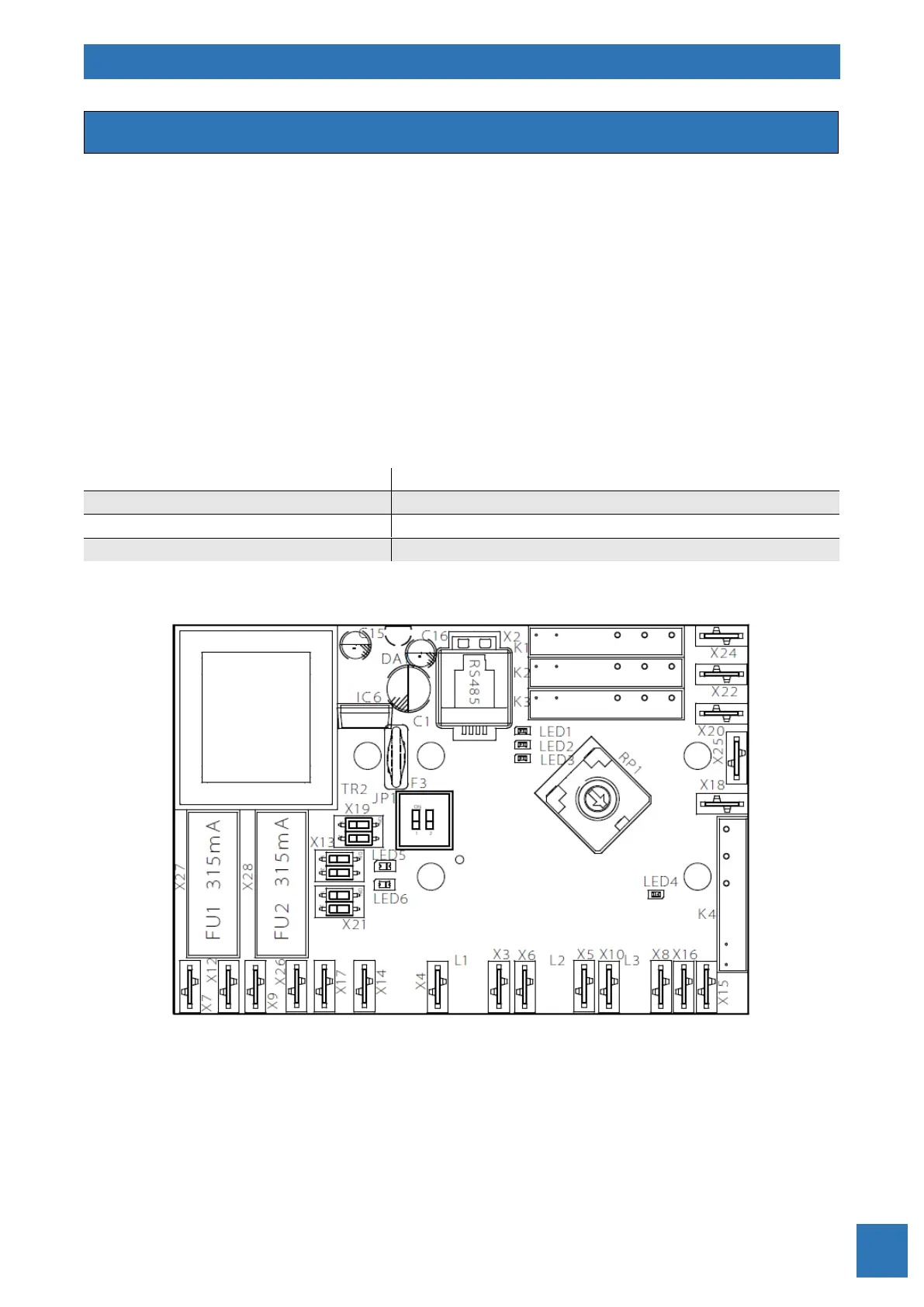

Fig. 11. Print circuit board (PCB) of temperature controller EKR-KN…
(View may vary depending on type EKR-KN)
