C-13
OPERATION
Dual Mounting Instructions (Cont.)

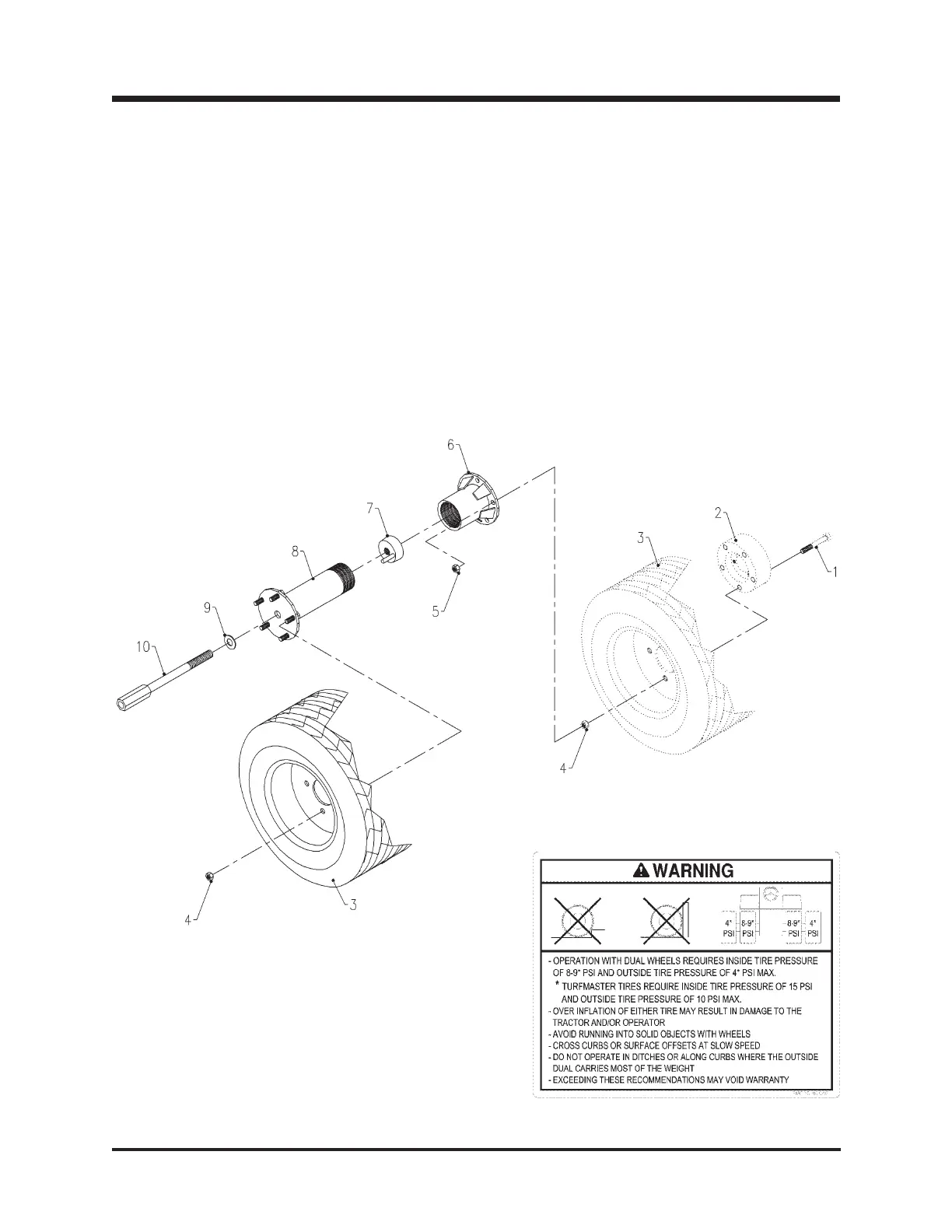

To install wheel assembly:
Raise tractor up approximately 2” by driving on planks or using a jack. Insert threaded
end of dual assembly into the inner wheel mount, turn wheel clockwise until the wheel
is hand tight. Using a 1” socket, torque draw bolt to 120 ft. Lbs.
To remove wheel assembly:
Loosen draw bolt (See C-13, Ref 10) approximately 5 turns and hit the end of the draw
bolt sharply with a medium size hammer. This will loosen the draw cone and allow
removal of the dual assembly by turning counter clockwise.
