Vents th-Tune - Purpose; Technical Data

4
th-Tune (A17) and pGD1 (A18)
www.ventilation-system.com
The automatic control system is designed for controlling industrial and domestic air handling units of the VUTR series.
It is rated for continuous operation.
PURPOSE
TECHNICAL DATA

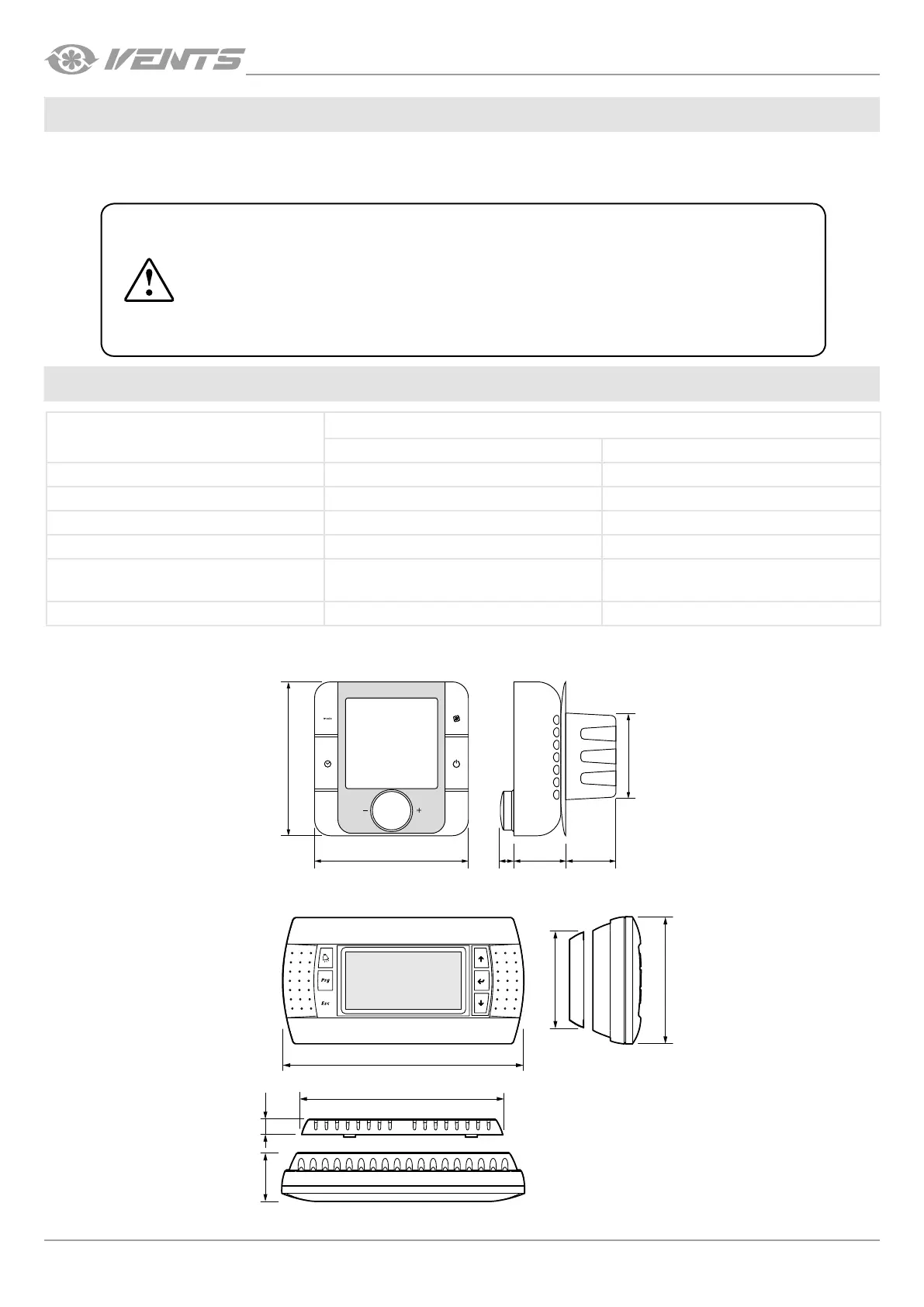

OVERALL DIMENSIONS OF THE THTUNE A17 CONTROL PANEL
OVERALL DIMENSIONS OF THE PGD1 A18 CONTROL PANEL
86 8 22,5 28
86 48
82
31 11
64
156
135
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT
THE APPROPRIATE TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED
ACCESS BY UNATTENDED CHILDREN.
PARAMETER
VALUE
thTune A17 pGD1 A18
Storage temperature [°C] from -20 up to +70 from -20 up to +70
Storage humidity [%] from 10 up to 90 (no condensation) from 10 up to 90 (no condensation)
Operation temperature [°C] from -10 up to +60 from -20 up to +60
Operation humidity [%] from 10 up to 90 (no condensation) from 10 up to 90 (no condensation)
Cable AWG 20 or AWG 22 up to 500 m
phone cable up to 50 m
twister pair AWG 22 up to 500 m
Ingress protection IP20 IP40
