INSTALLATION OF THE PGD1 A18 CONTROL PANEL
Connect the pGD1 control panel to the controller connector using the 6P6C (PLUG-6P6C-P-C2) phone plug. The maximum length of the
phone cable is 50 m.
To mount the control panel on a wall, route the phone cable to the selected location.
1. Secure the rear part of the casing in the standard box by means of the round-head screws supplied.
2. Connect the phone cable to the front part of the control panel.

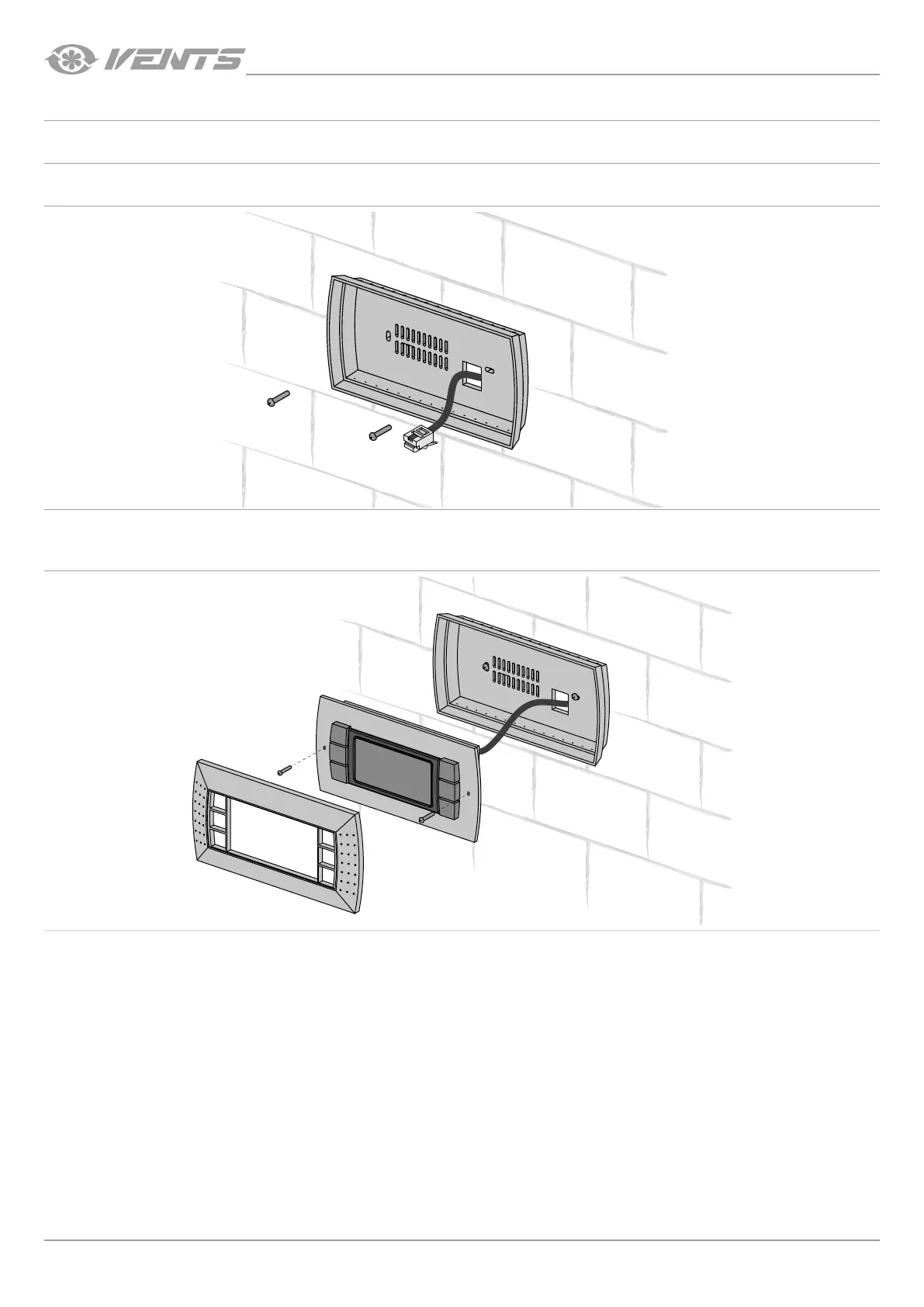

Fix the front part of the control panel to the rear part of the casing with the countersunk screws supplied as shown in the figure below
and then install the front bezel by pushing it until it clicks in position.
