9
EN
MOUNTING AND SET-UP

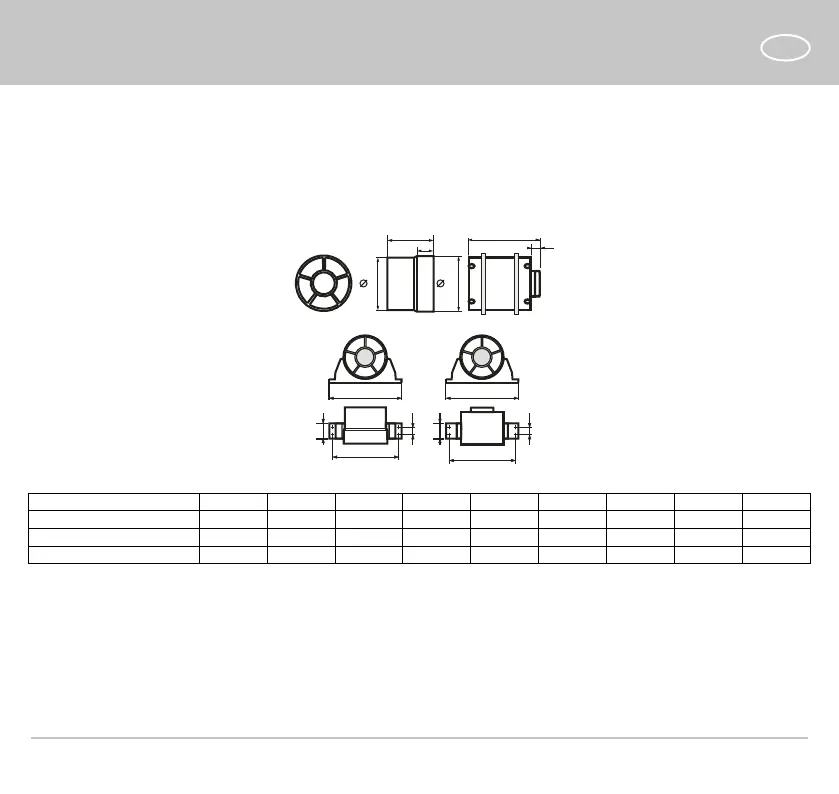

The designation of the fan, schematic representation of its appearance, overall and mounting dimensions, as well as design
features are given below.
VKO, VKO1
A
C
D
E
HF F H
E
G
G
D1
A
L
Model А D1 D C L E G H F
100 VKO/VKO1 91/113 104 100 31 28 160 144 29 45
125 VKO/VKO1 93/118 129 125 31 28 185 169 29 45
150 VKO/VKO1 108/128 154 150 46 28 200 184 29 45
The VKOk and VKO1k models are equipped with a mounting bracket for mounting on a flat surface.
