23
DO NOT USE A METAL SCREWDRIVER, KNIFE, ETC. FOR ADJUSTMENT
OPERATIONS NOT TO DAMAGE THE CIRCUIT BOARD
The fan with the timer and the TP motion sensor – the fan starts when a person moves at a distance of 1 to 4 meters with
a horizontal viewing angle of the sensor of 100°.
After the movement stops, the fan continues to operate within the set time period adjustable from 2 to 30 minutes by the
timer.
WARNING! The fans rated for 12 V power voltage (stated on the packing box and on the fan casing) connect to
12 V power mains only!
The fans rated for 220 V, 60 Hz or 127 / 220 V, 60 Hz, or 120 V, 60 Hz power mains depending on the model (stated
on the packing box and on the fan casing) connect to 220 V, 60 Hz, or 127 / 220 V, 60 Hz, or 120 V, 60 Hz (depending
on the model) power mains only!

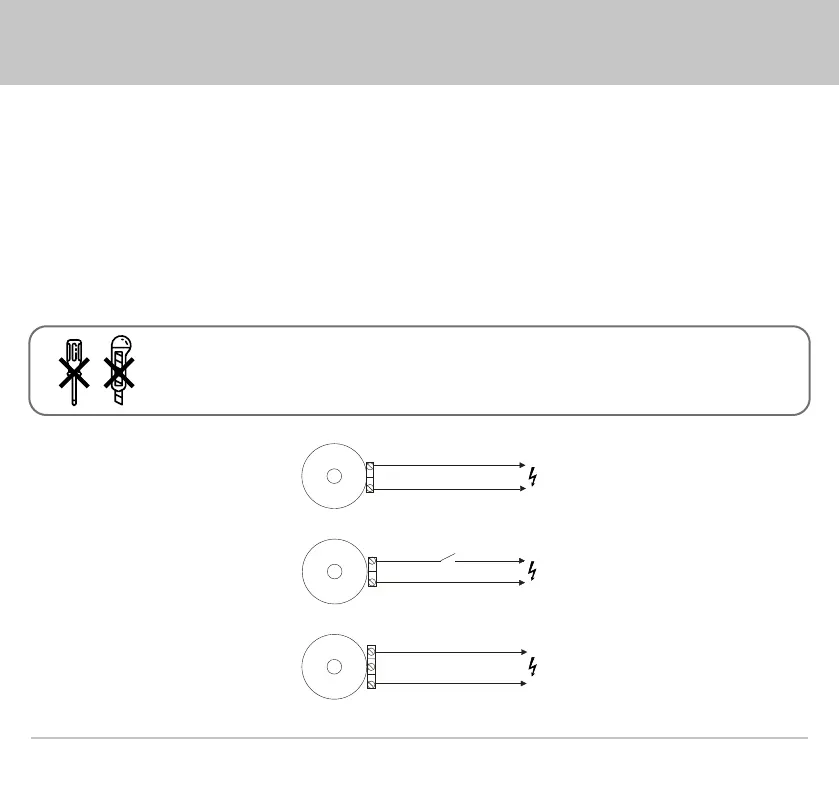

Wiring diagram for a fan with a built-in switch and a fan with a motion sensor.
Wiring diagram for a fan without a built-in switch.
S
Wiring diagram for a fan equipped with a timer/timer and a humidity sensor, with a built-in switch.
L (~)
LT (ST)
N (~)
