DESIGN AND OPERATING PRINCIPLE
The fan casing is made of galvanized steel.
For periodic inspections, inspection hatches are provided on the fan
casing.
The electric motor is installed outside the air flow.
The impeller with backward curved blades made of heat-resisting
steel.
To control the speed, the fan can be equipped with a frequency
converter (not included in the delivery set, ordered separately)

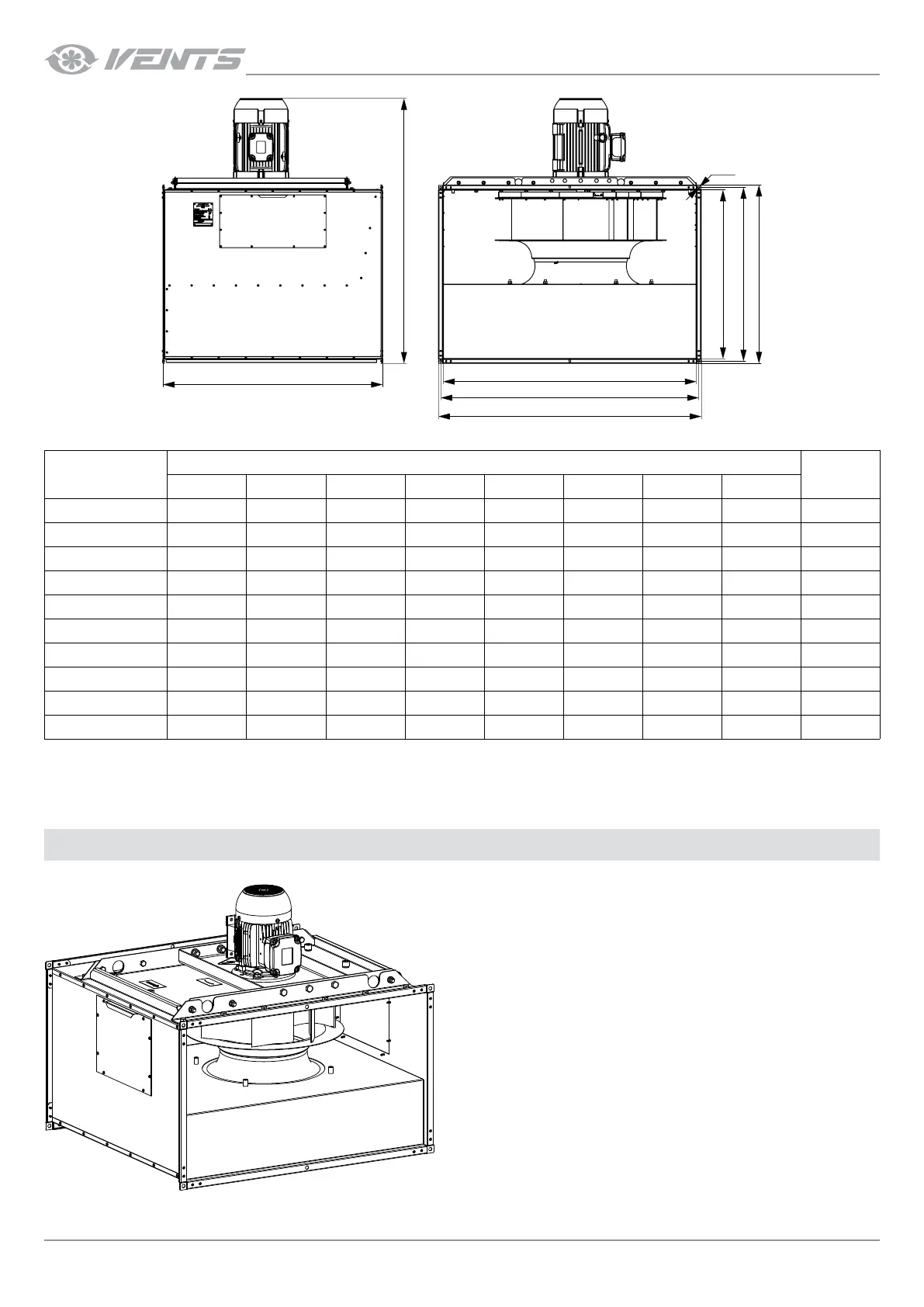

Model
Dimensions [mm]
Weight
[kg]
A A1 A2 B B1 B2 L H
VKPD-250 500 520 540 300 320 340 680 557 40
VKPD-280 600 620 640 300 320 340 680 558 40
VKPD-315 600 620 640 350 370 390 680 624 56
VKPD-355 700 720 740 400 420 440 680 657 51
VKPD- 400 700 720 740 400 420 440 680 674 64
VKPD-450 800 820 840 500 520 540 800 772 85
VKPD-500 800 820 840 500 520 540 840 813 94
VKPD-560 900 920 940 600 620 640 840 959 96
VKPD-630 1000 1020 1040 700 720 740 1040 1050 125
VKPD-710 1200 1220 1240 800 820 840 1040 1255 171
