One Disc User Manual
3

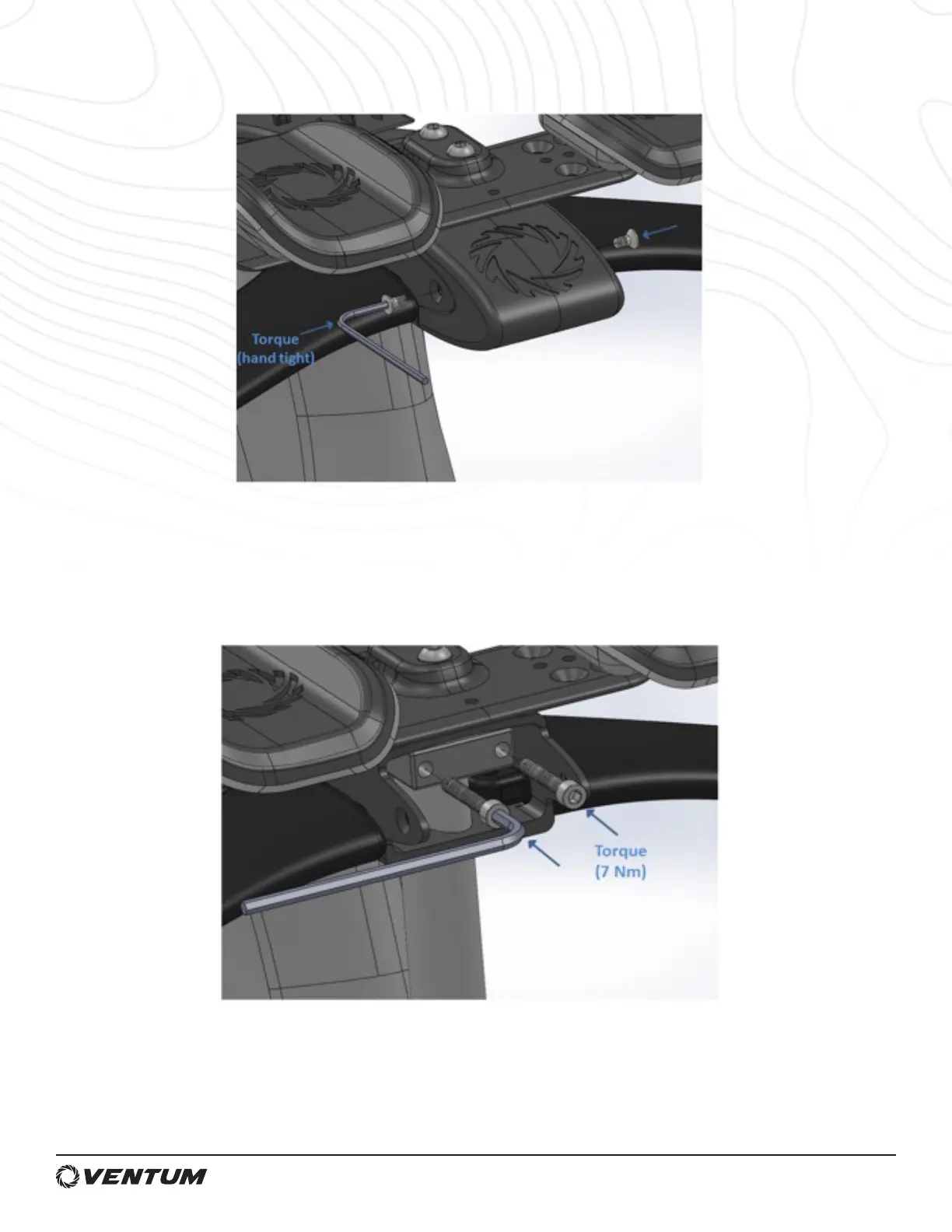

Nose-cone side bolts
▼ Position the nose cone as shown
▼ Hand tighten the nose cone side bolts
Mono-riser bolts
▼ Position the mast clamp as shown
▼ Torque the mono-riser bolts to 7 Nm
