One Disc User Manual
4

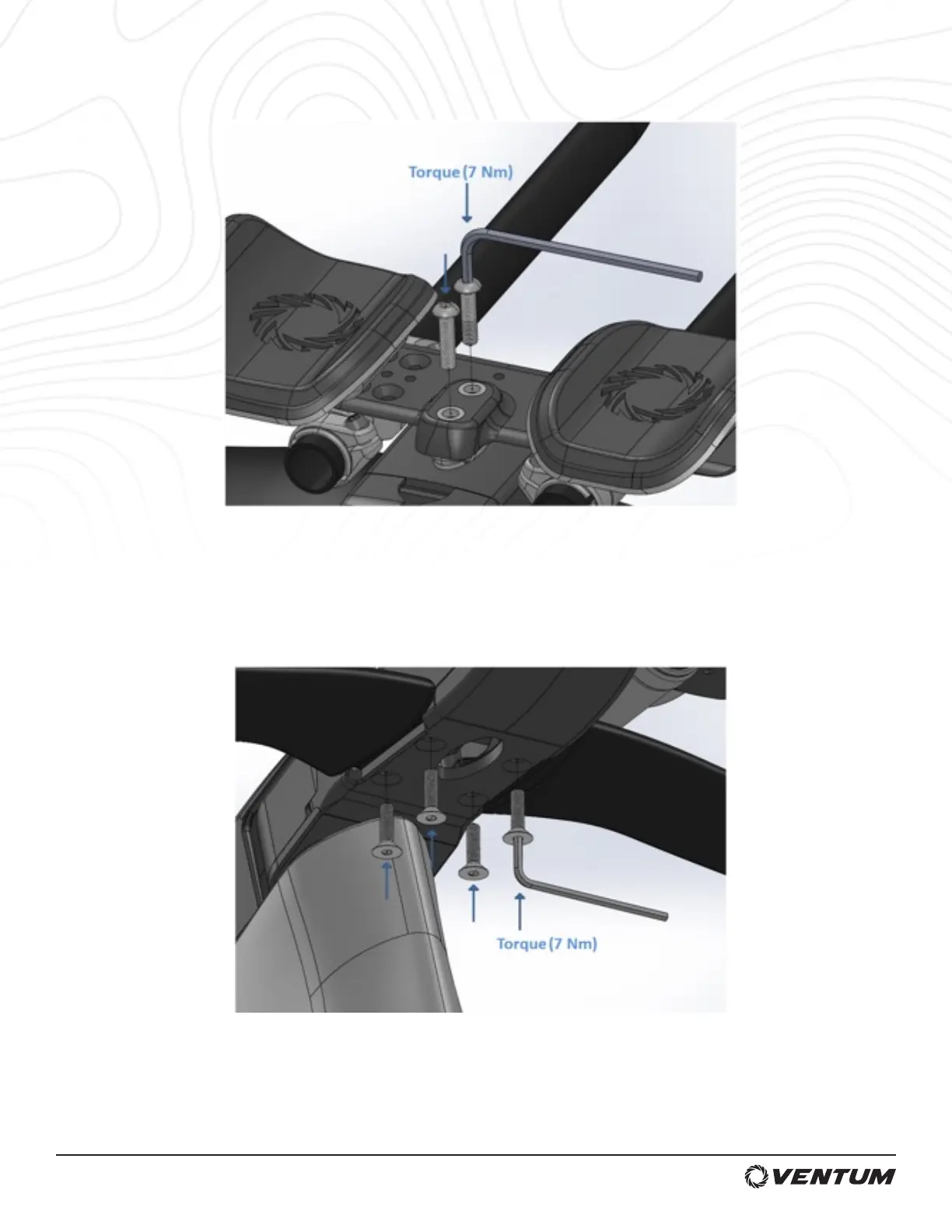

Mast tilt bolts
▼ Position the armrest mount as shown
▼ Torque the mast tilt bolts to 7 Nm
▼ Torque the base bar bolts to 7 Nm
Base bar bolts
