Verint Nextiva S1808e User Manual

4

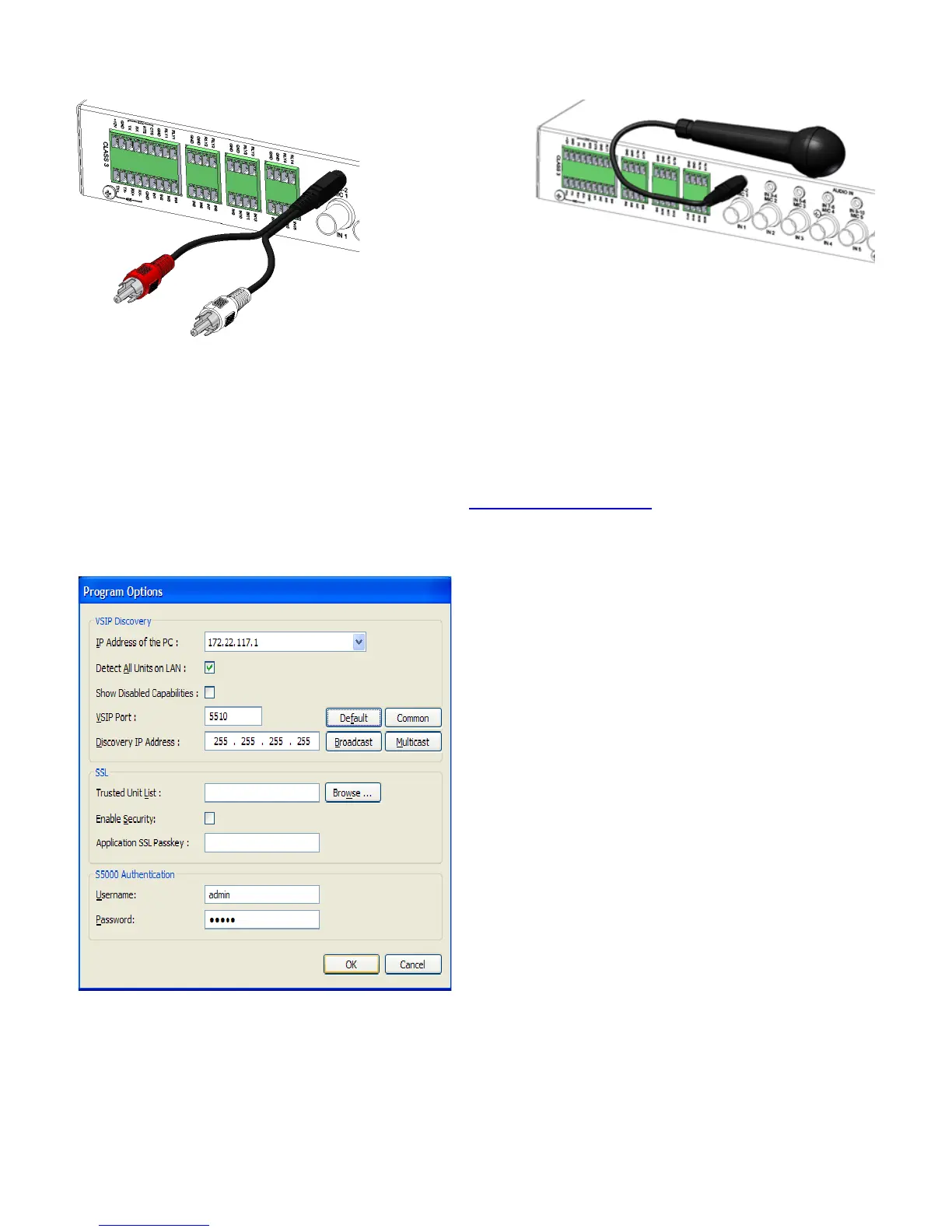

► To connect the audio cable from a audio source for the S1808e-A and S1816e-A:
1. Plug the audio cable from an audio source such as a microphone to the audio/MIC input connectors on the
rear of the encoder.
Obtaining the IP Address of the Nextiva S1800e Series
Encoder
By default, all Nextiva S1800e series encoders are DHCP (Dynamic Host Configuration Protocol) enabled.
Use SConfigurator to obtain the IP address of the encoder. If you have a DHCP server, the encoder will
automatically obtain a valid IP configuration. Otherwise, you need to manually enter a IP address.
► To obtain the IP address of the encoder:
1. Download the latest version of SConfigurator from: www.verint.com/manuals
.
2. Extract the executable file (SConfigurator.exe) to the desktop of the computer.
3. Start SConfigurator by double-clicking SConfigurator.exe on the desktop.
4. In the General tab, click Program Options.
5. Check Detect All Units on LAN.
6. Ensure that the VSIP Port is 5510; otherwise, click Default.
7. Ensure that the Discovery IP Address is 255.255.255.255; otherwise, click Reset to Broadcast.
8. Click OK.
9. Select the Units tab, then click Discover. The information displayed for the Nextiva S1800e series encoder
will vary depending on whether your network is using a DHCP server or not.

Verint Nextiva S1808e Specifications

General

Brand	Verint
Model	Nextiva S1808e
Category	Media Converter
Language	English
