3. Fasten the power cable by properly tightening the relief unit of the power cable (4).
4. Fasten the position of the relief unit by properly tightening the fixing screws (5).

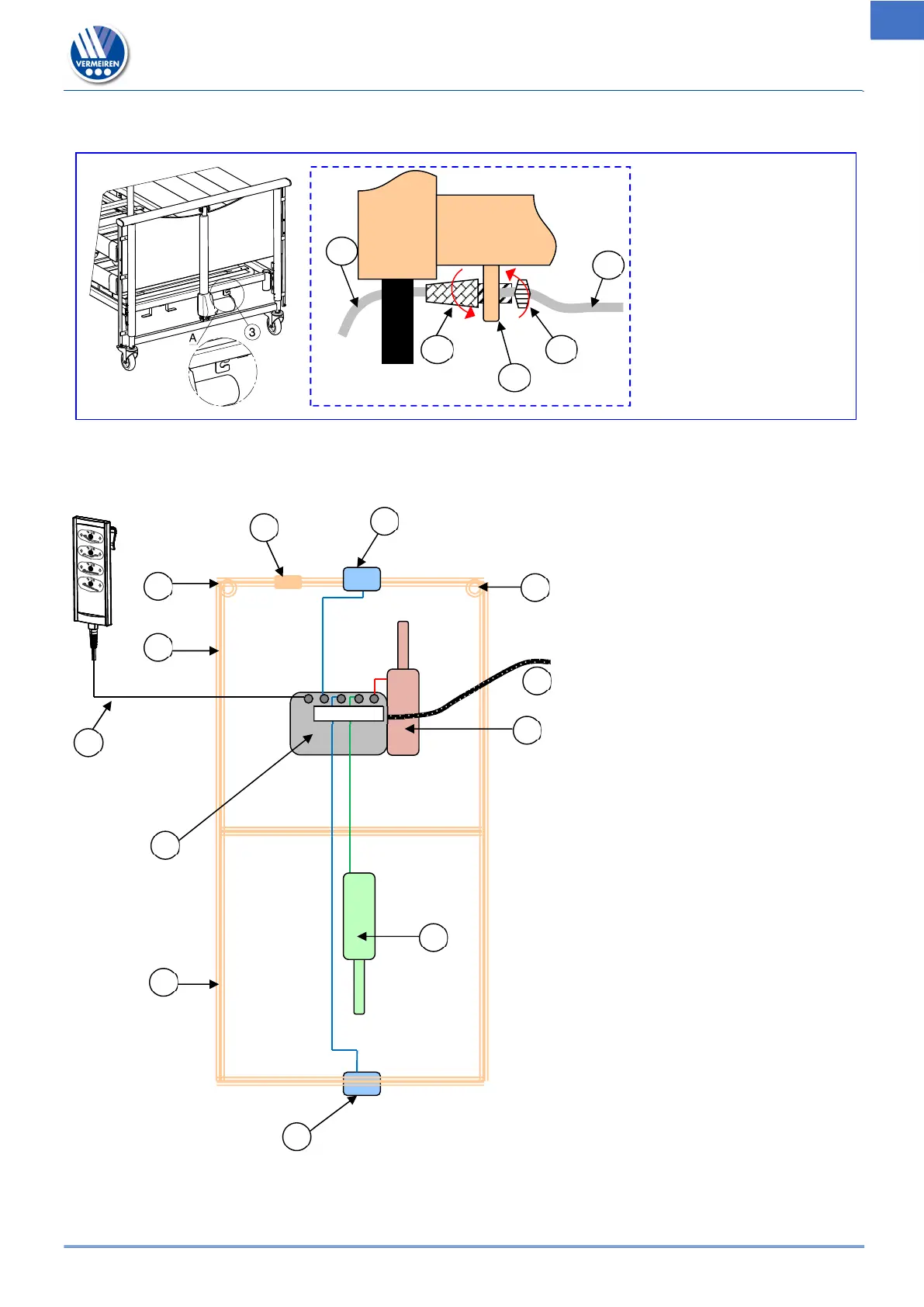

3.4 Cable placement
1. Mattress slatted frame head end
2. Mattress slatted frame feet end
3. Sockets lifting pole
4. Strain relief
5. Power supply
6. Control box
7. Head end motor
8. Knee-bend motor
9. Head panel motor
10. Feet panel motor
11. Handset
All wires within the bed frame should
be placed in such a way that contact
with the floor, deformity and crushing
are avoided. Insert the power cables
for the motors in the opening on the
motor mounts.
1 = Power cable
(power connection)
2 = Power cable
(Transformer
connection)
3 = Holder
Strain relief
4 = Strain relief
Power cables
5 = Screw joint
Strain relief
2
1
4
3
5
1 = Power cable
(power connection)
2 = Power cable
(transformer connection)
3 = Holder Strain relief
4 = Strain relief Power
cables
5 = Screw joint Strain relief
4 3 2 1
10
4
3
5
6
3
1
7
9
2
11
8
