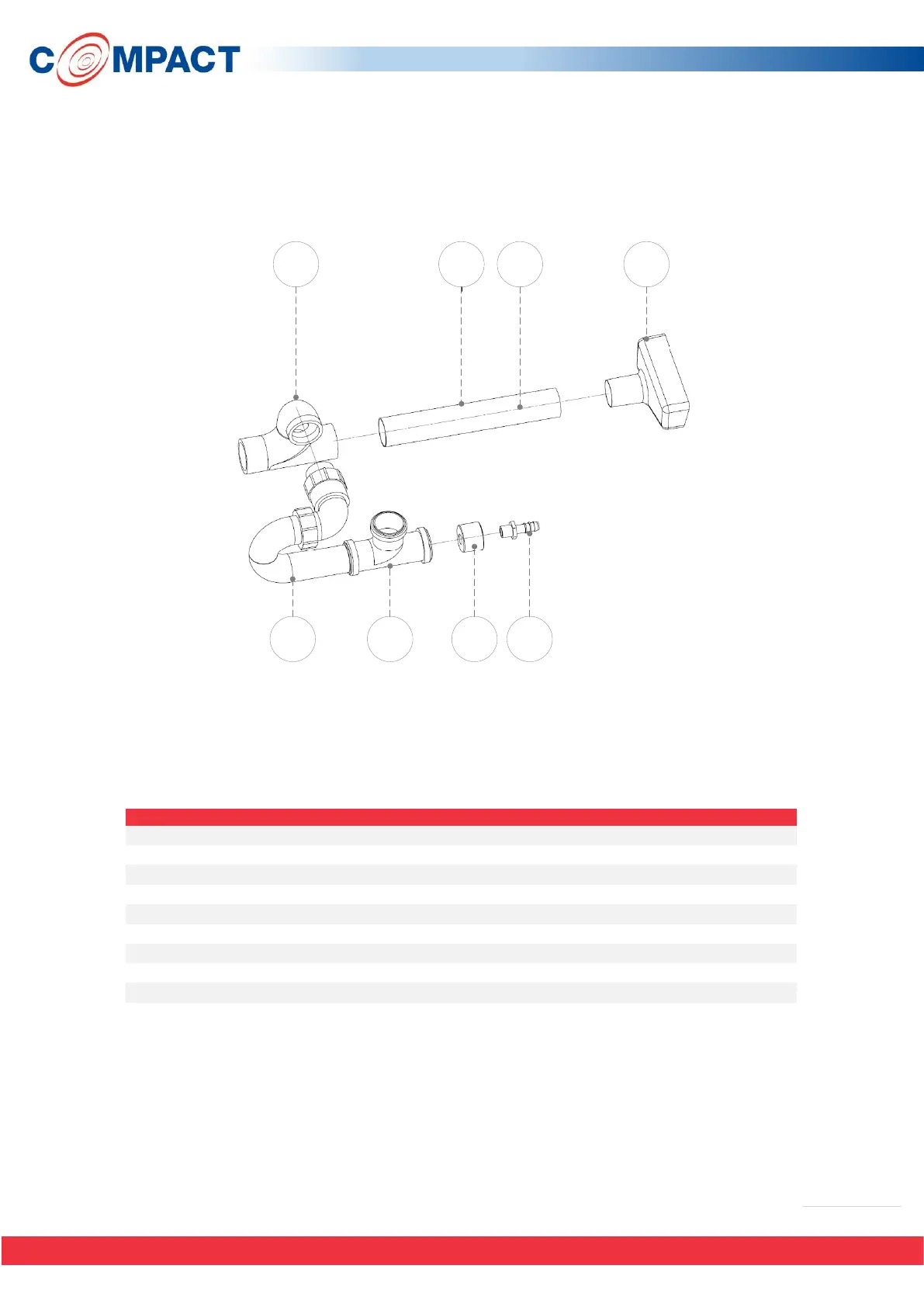

5.9. Overflow Assembly
1 2 4
5 6 7 8
3
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER
9210310
1
Moulded Elbow
9210098
2
Copper Pipe
N/A
3
In-Line Non Return Valve
9210167
4
Overflow Funnel
9210007
5
40mm (1 ½ ”) P Trap
9210144
6
40mm Swept Tee
9210145
7
P Trap Plug
9210029
8
Straight Nozzle 3/8” BSP x 12mm
9210172
