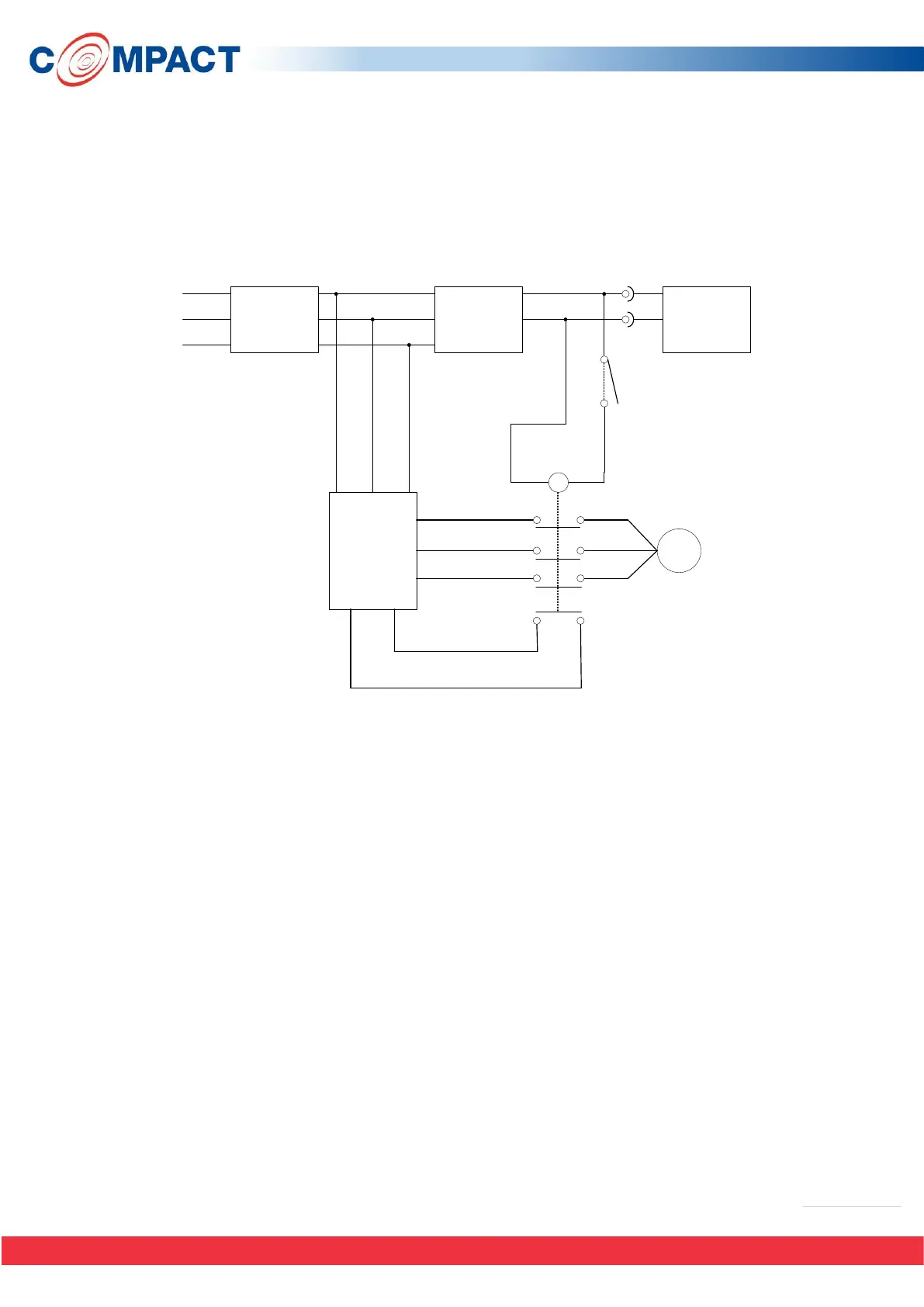

7. Electrical Enclosure
EMC FILTER
24V DC
POWER
SUPPLY
PCB
D700
INVERTER
M
L
N
E
24v
0v
0v
24v
Lid Position
Safety Switch
MAINS
SUPPLY
1PH 230/110v
RL SD
W
V
U
L3
L2
L1
