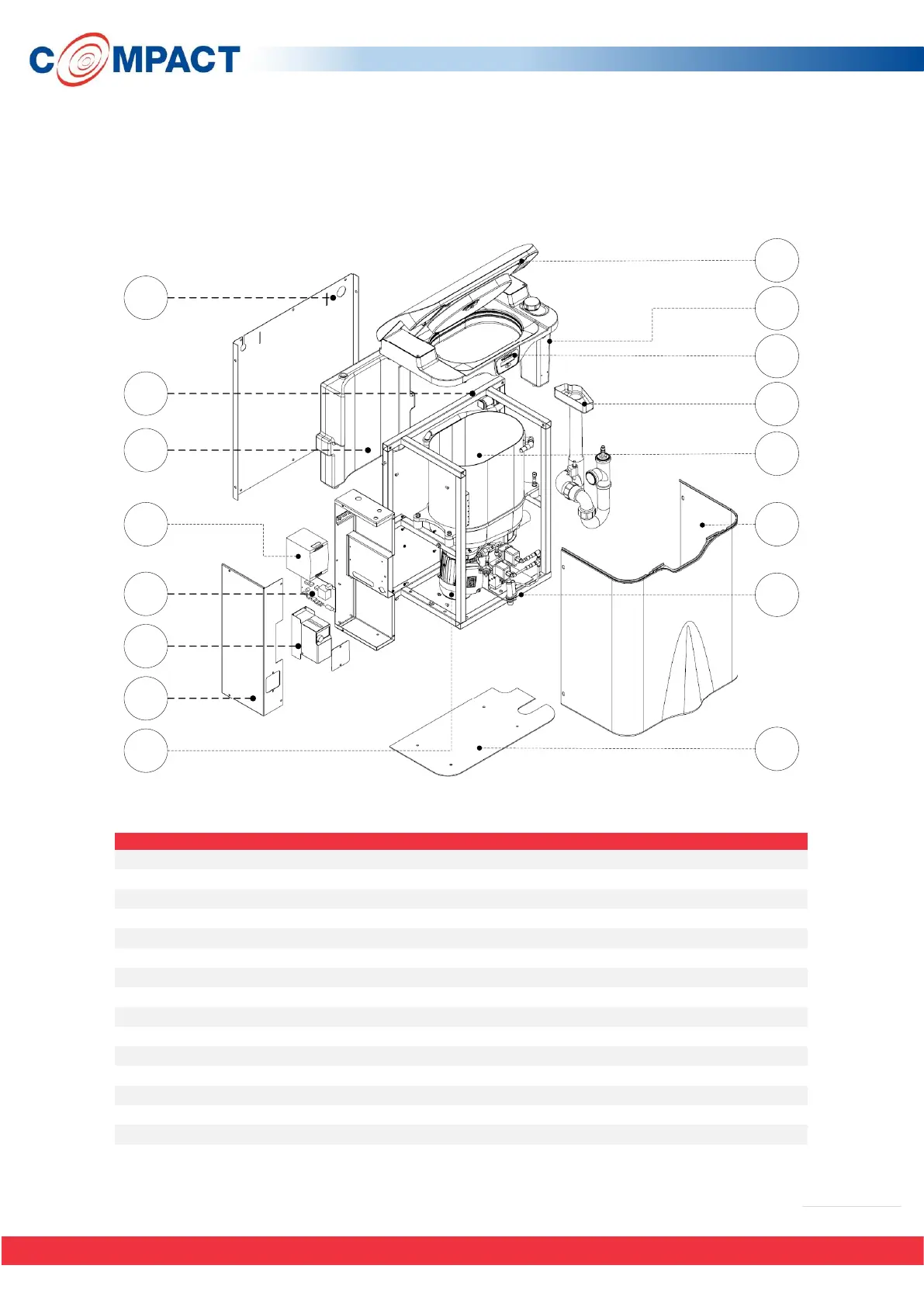

3.4. General Assembly
This image is for familiarisation only, to see full detail on subassemblies and part numbers
please view the ‘Subassemblies and Spares’ section (5).
9
11
10
12
14
16
7
6
5
4
3
1
2
13
8
15
REF
DESCRIPTION
1
Back Panel
2
Frame
3
Water Tank
4
Power Supply Unit
5
PCB
6
Mitsubishi Inverter
7
Electrical Cabinet
8
3 Phase AC Motor
9
Lid Assembly
10
Deodoriser Tank
11
Display
12
Overflow & Assembly
13
Hopper
14
Front Panel
15
Foot Sensor
16
Base Panel
