Vernacare Vortex+ - SECTION 4: Outer Casing

Page | 17

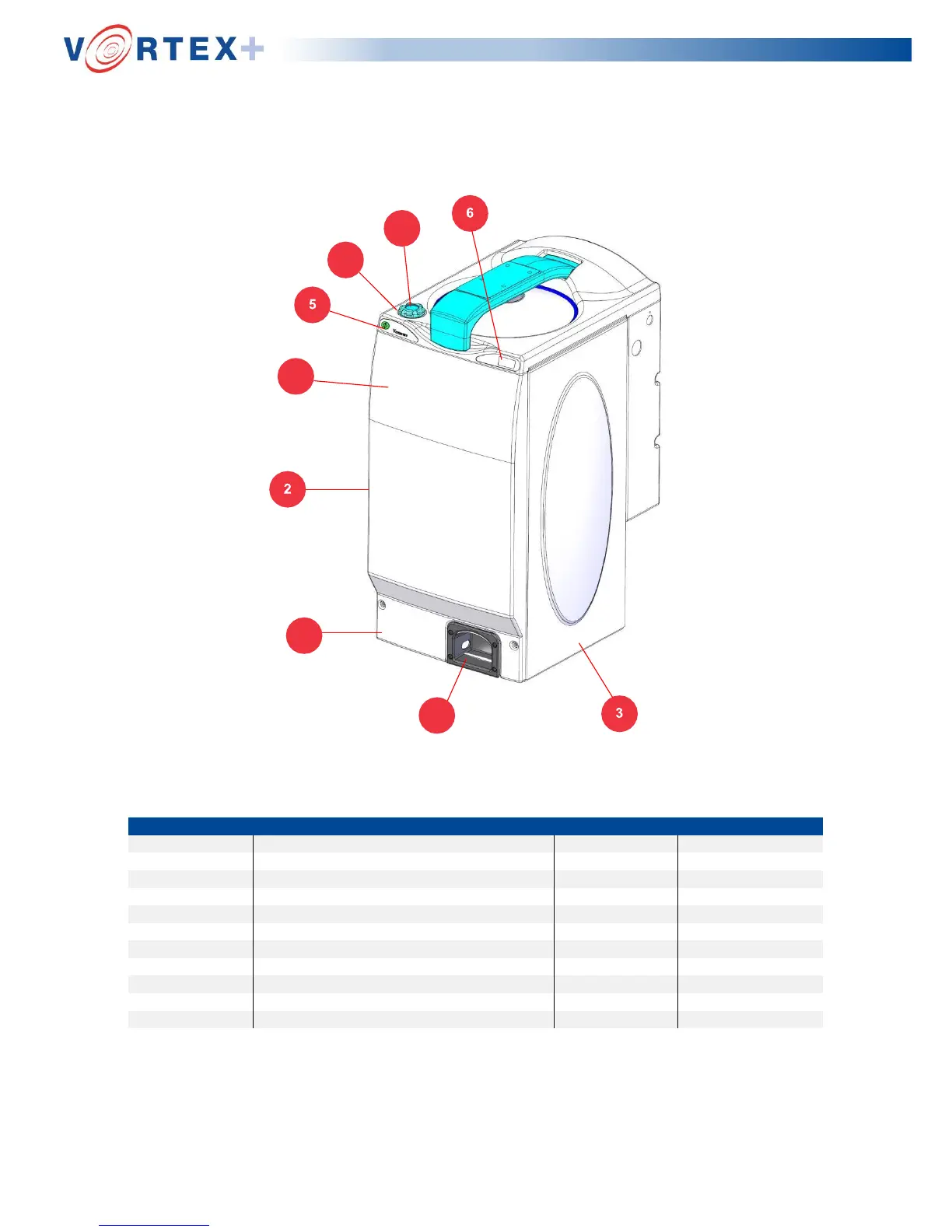

SECTION 4: Outer Casing
KIT
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER
1
Front Cover Kit
9207014
1.1
Front Cover
9200531
1.2
Foot Sensor Housing
9200531
1.3
M6 x 20 Panel Screw (x2)
9750023
2
2
RH Side Panel
9200610
3
3
LH Side Panel
9200611
4
Deodoriser Cap Kit
9207013
4.1
Deodoriser Tank Cap
9200206
4.2
Filler Cap ‘O’ Ring
9200209
5
5
Start Switch Keypad
9200534
6
6
Display Screen
9200819
4.1
4.2
1.1
1.3
1.2
