Vernacare Vortex+ - SECTION 5: Cutter & Motor

Page | 18

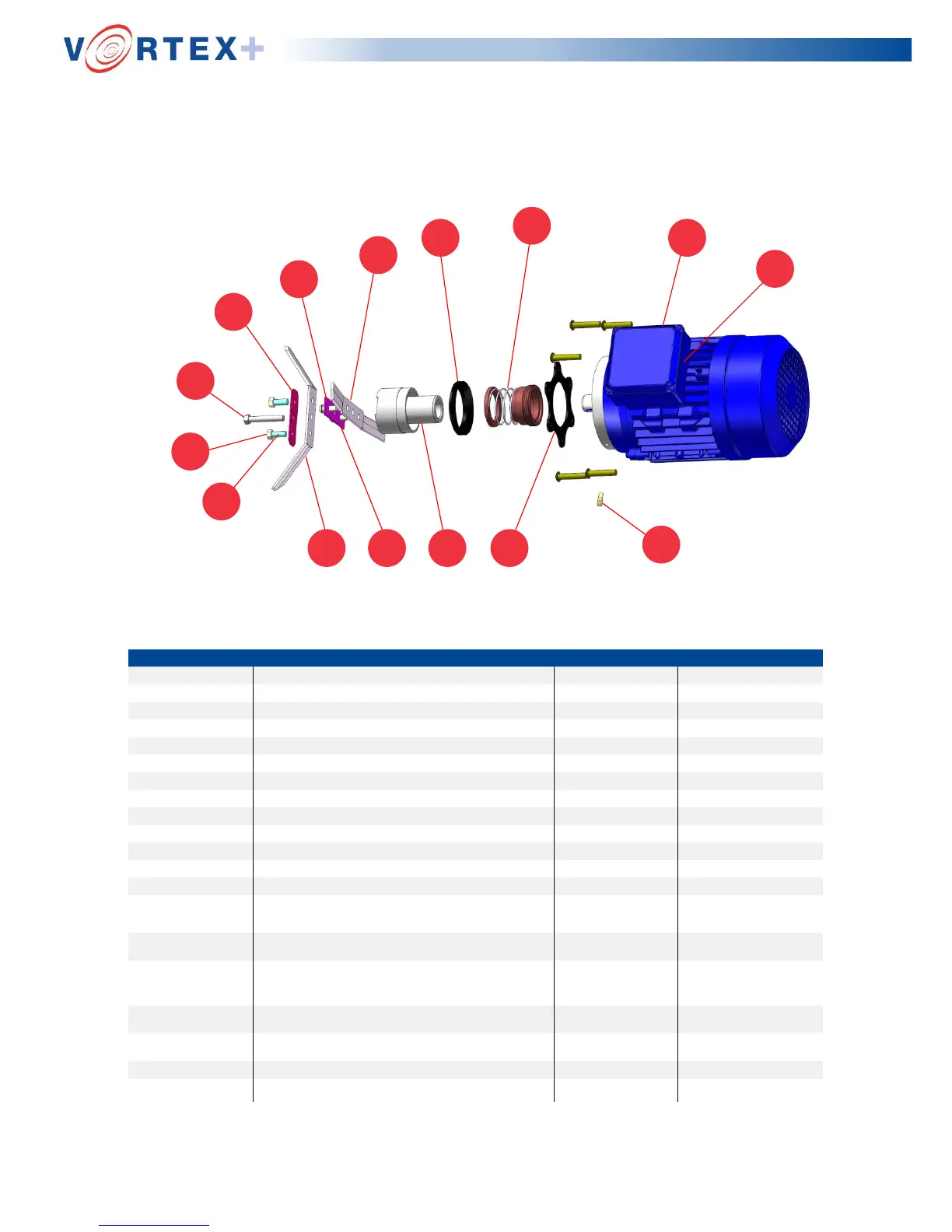

SECTION 5: Cutter & Motor
1.1
1.4
1.3
1.21.53.43.1
3.8
3.6
3.5
3.3
3.7
3.2
2.2
1.6
KIT
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER
1
Vortex Motor Kit
9207004
1.1
Electric Motor 230V/400V 3Ph 50Hz
9200424
1.2
Motor Gasket
9752027
1.3
Barbed Fitting
9750100
1.4
Vortex Motor Cable
9200693
1.5
Cutter Motor Adaptor
9200402
1.6
Mechanical Seal
9753005
2
Vortex Mechanical Seal Kit
9207006
(1.6)
Mechanical Seal
9753005
2.2
V-Seal
9753000
3
Vortex Blade Kit
9207015
3.1
Top Cutter Blade
9200418
3.2
Bottom Cutter Blade
9200417
3.3
Cutting Blade Locking Plate (Tab
Washer)
9753011
3.4
M8 x 20 Hex HD Screw x2
9750077
3.5
M8 x 50 Hex HD Screw x1
9750006
3.6
M8 x 35 Button HD Screw x2
9750075
3.7
Fibre Gasket
9753010
3.8
D8 Spring Washer x2
9750033
4
Cutter Motor Assembly Kit
9207005
