Vernacare Vortex+ - SECTION 6: Diaphragm Valve

Page | 19

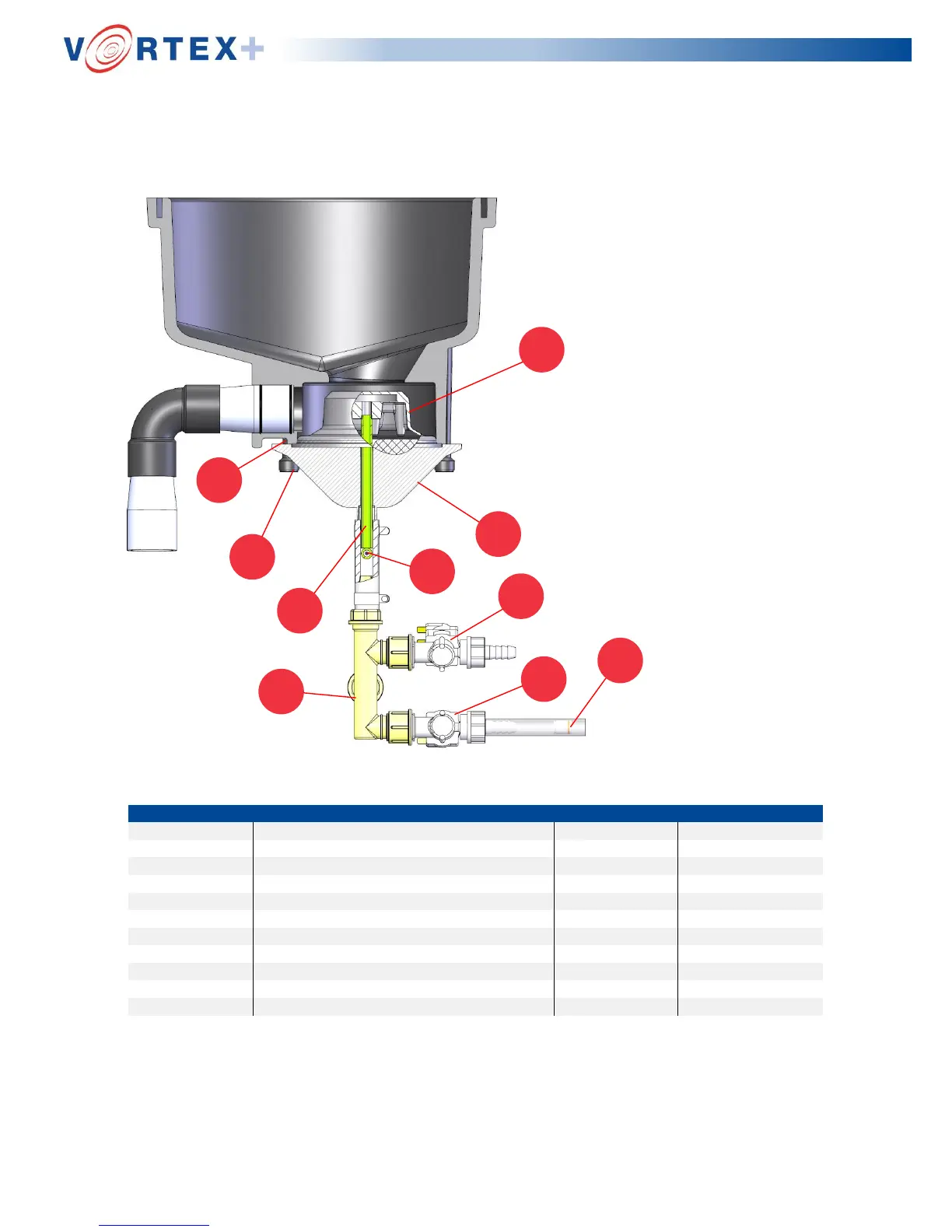

SECTION 6: Diaphragm Valve
1.1
5
3
4
3
6
1.3
1.2
2.2
2.1
KIT
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER
1
Diaphragm & Spring Kit
9207012
1.1
Diaphragm
9200304
1.2
Diaphragm Spring
9200333
1.3
Retaining Pin
9750085
2
Diaphragm Fastening Kit
9207016
2.1
Grub Screw x 8
9200326
2.2
Three Lobed Nut x 8
9200327
3
3
Water Inlet/Outlet Solenoid Valves
9200724
4
4
Non Return Valve
9200726
5
5
Diaphragm Chassis
9200328
6
6
Plumbing Elbow
9207043
