Vernacare Vortex+ - SECTION 11: PCB

Page | 25

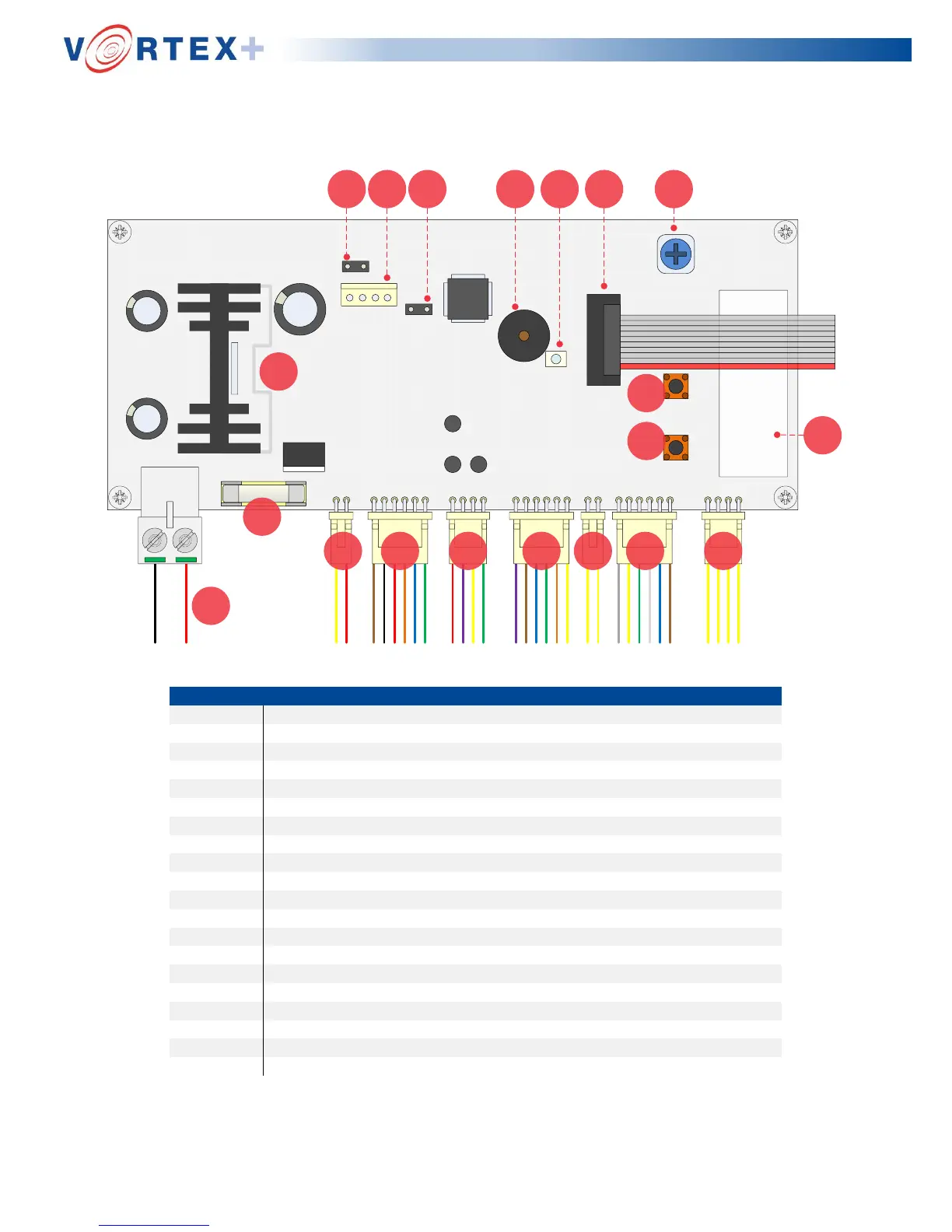

SECTION 11: PCB
Vortex + V2
Outlet
Pump
2 3 4 5 6 7 8
1
9 10 11 12 13 14 15
16
18
19
17
20
REF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
DESCRIPTION
24v PCB Power Supply Cable Connection
Actuator Board Cable Connection
Lid-Lock Cable Connection
Solenoid Valve(s) Cable Connection
Data Cable Connection
Start Button Cable Connection
IFM Sensor Cable Connection
Pressure Transducer Cable Connection
Auto-Start Jumper Plug Connection
Software Fob Cable Connection
Service (Cycle Count Reset) Cable Connection
Audible Buzzer
Pulsing LED PCB Indicator
E-Paper Display Ribbon Cable Connection
Pressure Switch Potentiometer
Manual Pump Button
Manual Outlet button
5A Fuse
5V Voltage Regulator & Heat Sink
Serial Number Marking Area
