Vernacare Vortex+ - Appendix C; Diagram for Motor Electrical Box Plug and Socket Connections; Appendix D; Orientation of Diodes for Solenoid Valve Coil Terminals

Page | 30

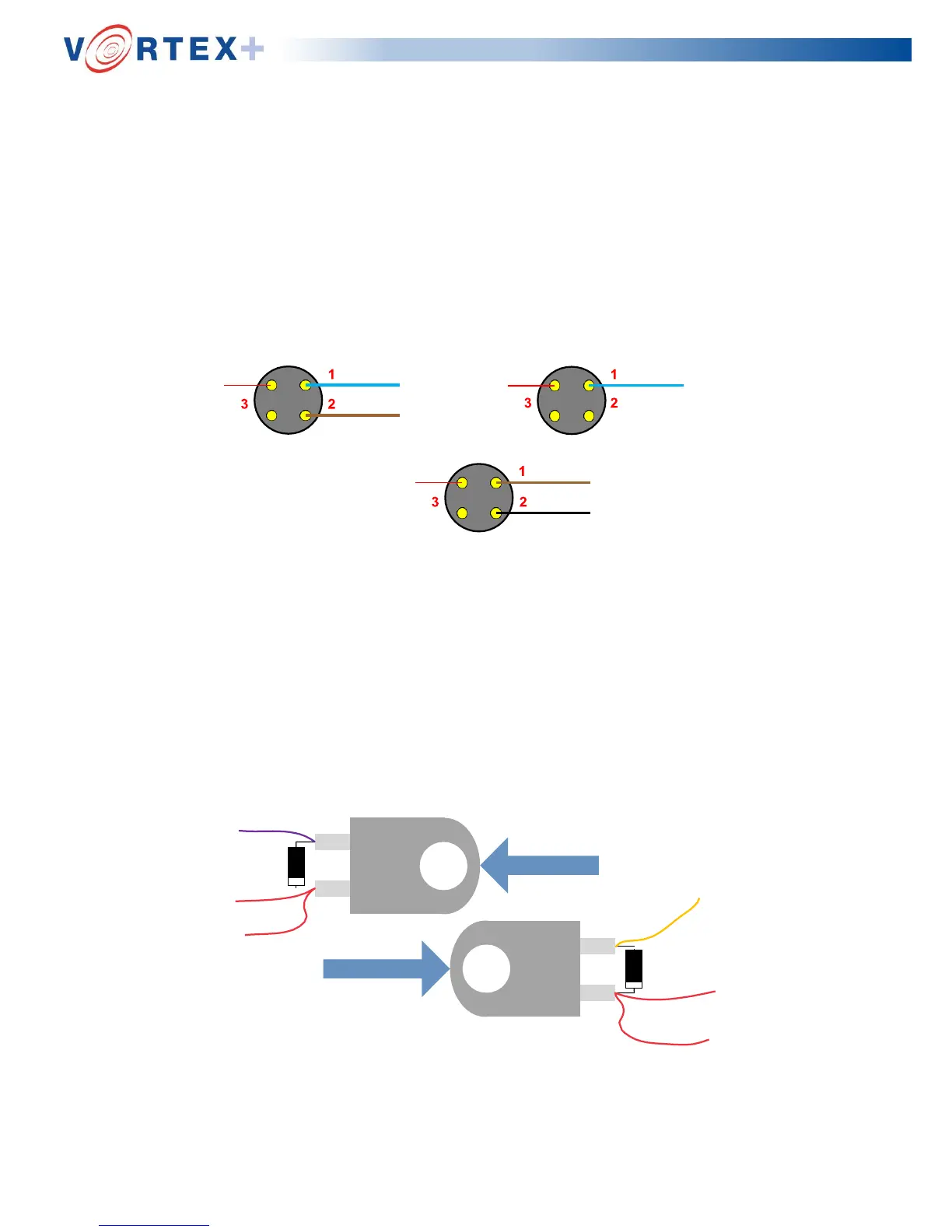

Appendix C
Diagram for motor electrical box plug and socket connections
Power Supply 230V
AC socket/plug
Power Supply 110V
AC socket/plug
Appendix D
Motor socket/plug
Orientation of Diodes for drain inlet and drain outlet solenoid
valve coil terminals
Diode
OUTLET VALVE
INLET VALVE
Diode
