Vernacare Vortex+ - Page 7

Page | 7
150mm Clear each side
100mm Clear at rear
Deodoriser
fill cap
NOTE:
Water inlet & warning pipe
connections can be made to
either the left or right hand side
of the machine.
2" Drain
Connector
ALL DIMENSIONS IN mm
2 Mounting
Holes Ø9

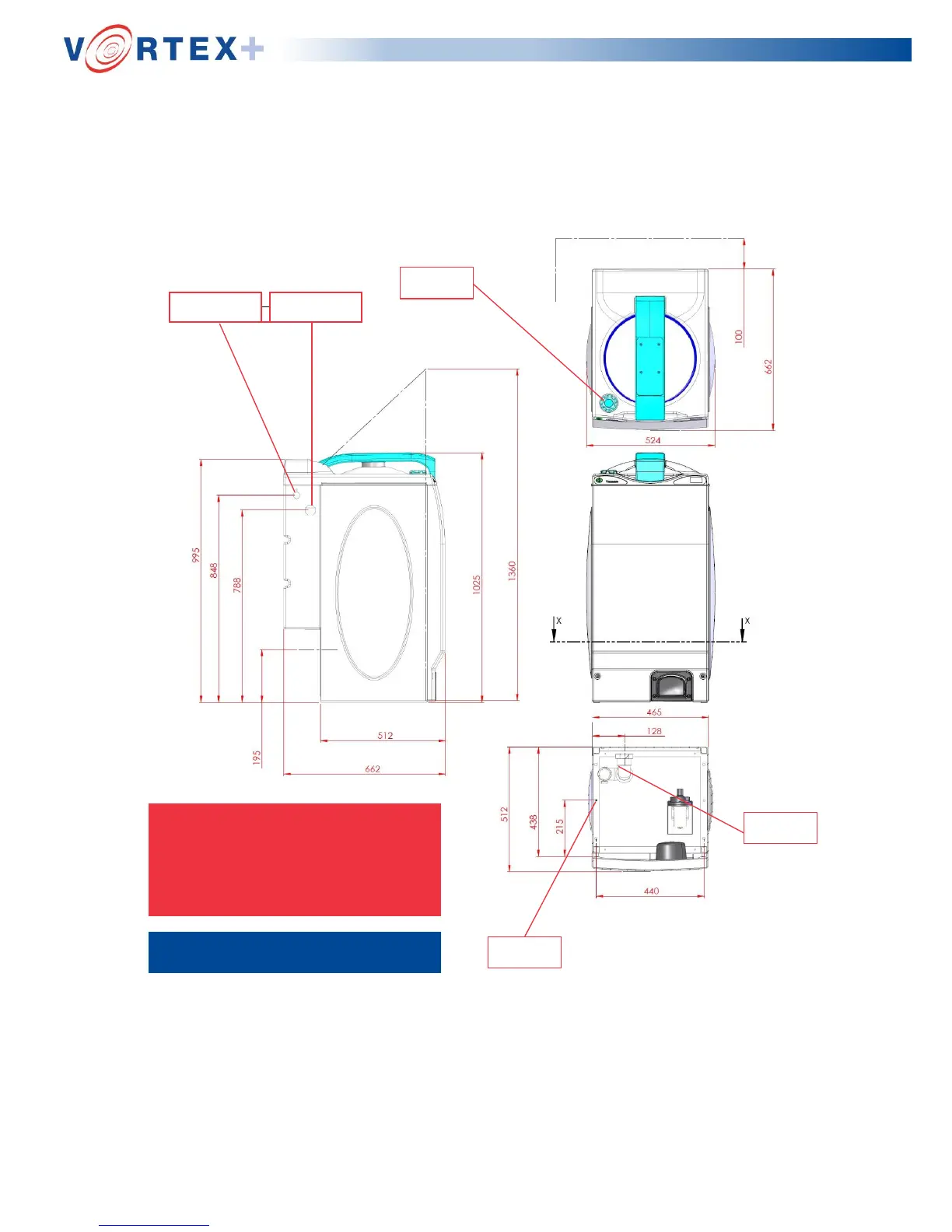

Dimensions of the Vernacare Vortex +
Water Inlet
½’’ BSP Male
Warning Pipe
Connection
(drain)
with lid open
!IMPORTAN
T!
