Versa-Matic E1 - Performance

e1mdlHsmATEXUL-rev0317
www.versamatic.com
3 • Model E1 Metallic Bolted
Performance
E1 1" Bolted Metal
Rubber and TPE Fitted
Flow Rate
Adjustable to ........ 0-35 gpm (132 lpm)
Port Size
Suction ............1" Female NPT (BSP)
Discharge..........1" Female NPT (BSP)
Air Inlet ......................3/8" NPT
Air Exhaust ..................1/2" NPT
Suction Lift
Dry ........................15' (4.6 m)
Wet........................25' (7.6 m)
Max Solid Size (Diameter)
........................1/8" (3.2 mm)
Max Noise Level .............91 dB(A)
Shipping Weights
Aluminum ................31 lbs (14 kg)
Stainless Steel ...........36 lbs (16.3 kg)
Caution: Do not exceed 50 psig
(3.4 bar air supply pressure!)
The UL Listed Pump
The E1-UL pump model had been tested by Underwriters Laboratories, Inc. and is in compliance with the safety specications for air-operated pumps for use in the
transfer of ammable liquids. This pump has been rated for use in pumping the following liquids:
Waste oil Diesel Fuel Aviation Fuel
Nos. 2 through 6 oil Kerosene Ethyl and Methyl Alcohol
Motor oil Gasoline (including alcohol blends) Ethylene Glycol
Gear oil Automatic Transmission Fluid Water
Maximum rated air inlet pressure: 50 PSI
Maximum rated discharge pressure: 50 PSI
Note: For E1 pumps tted with PTFE overlay diaphragms, reduce water discharge gures
by 20% and suction lift to 10' (3 m) dry/ 20' (6 m) wet.

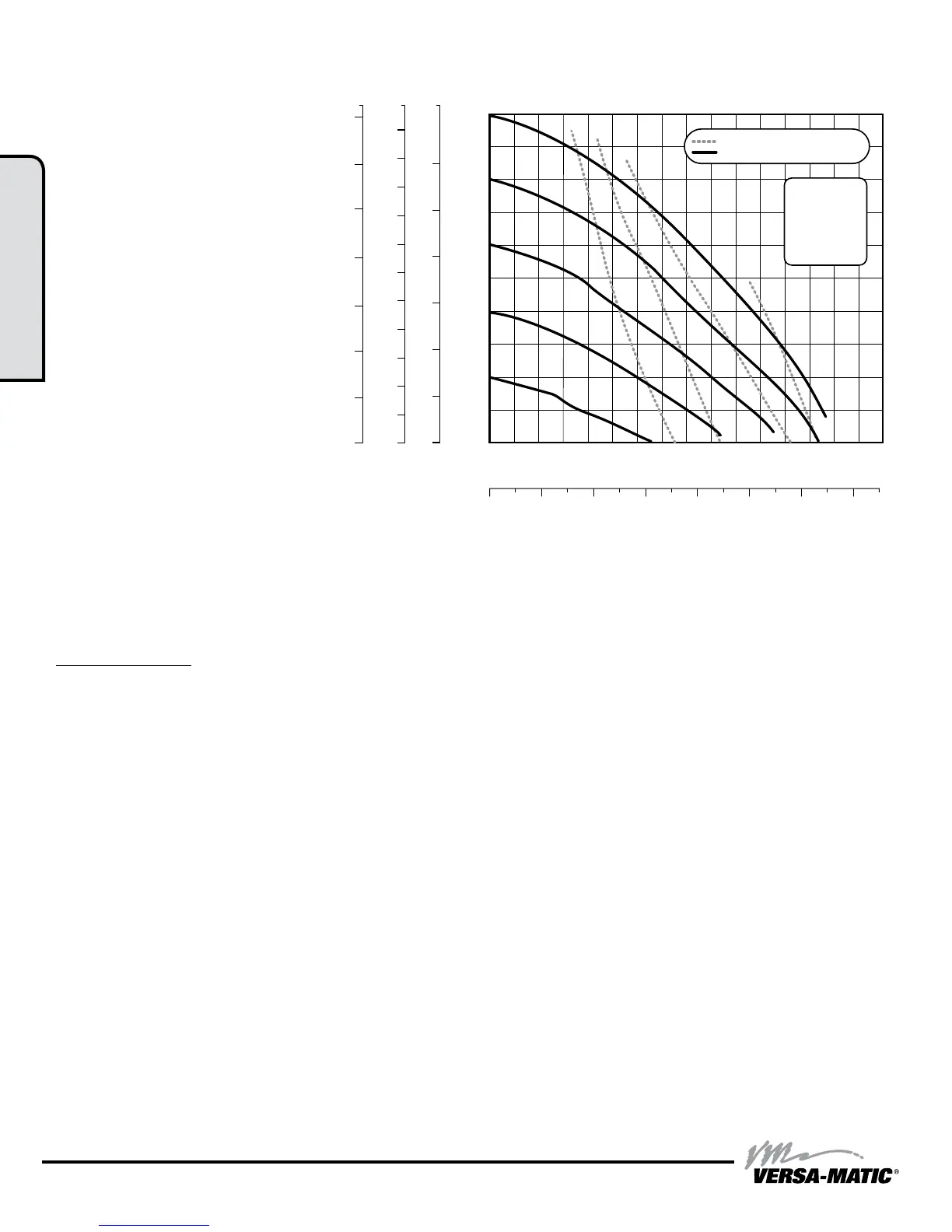

0 20 40 60 80 100 120 140
0
0
5
10
15
20
25
30
35
40
45
50
5 10 15 20 25 30 35 40
10
15
20
5
Meters Feet
Discharge Head in PSI
0
10
20
30
40
50
60
70
80
90
100
110
BAR
0
1
2
3
0
5
10
15
20
25
30
35
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Displacement Per Stroke,
.10 Gal. (0.38 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M
3
/HR
5 8.5
10 17
15 25.5
20 34
1: PUMP SPECS
