VX-4000 Operating Manual
CONTROLS & CONNECTORS

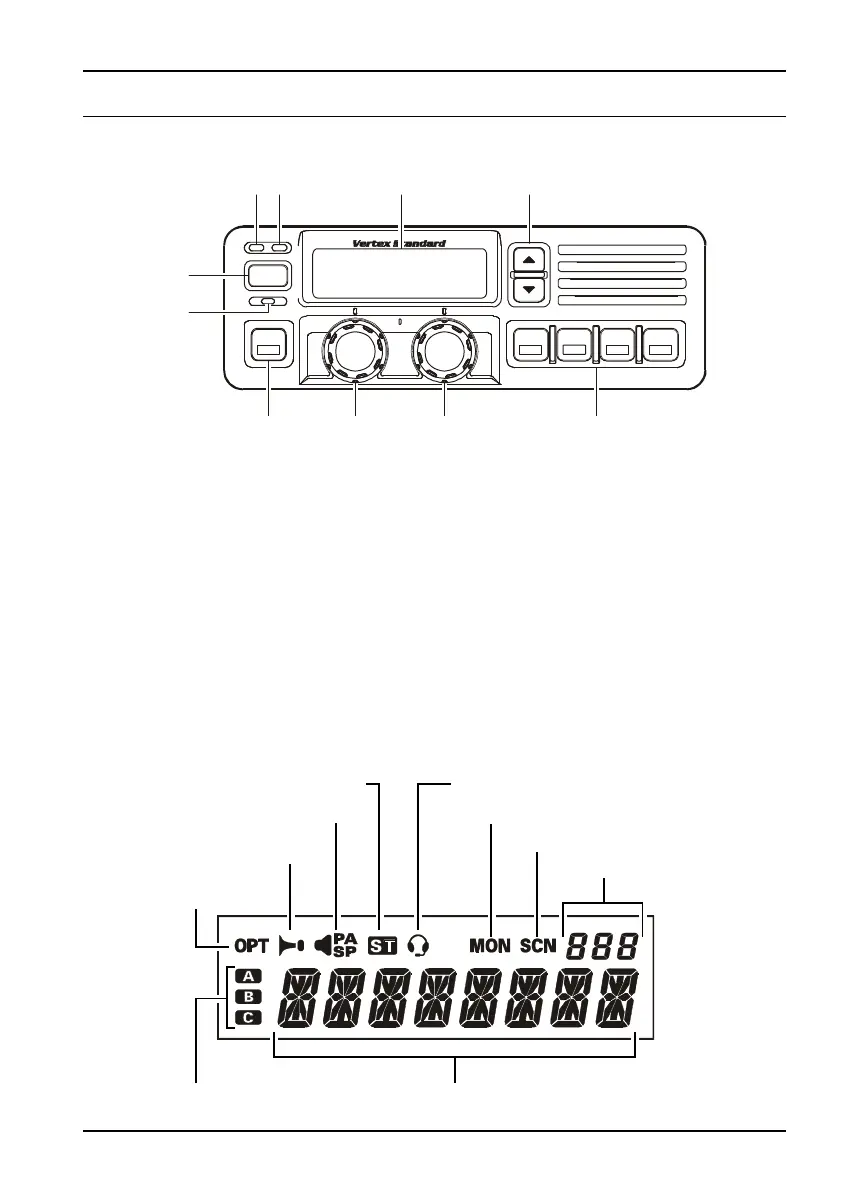

Front Panel
•
POWER Button
Press the button to turn the transceiver ON and OFF.
‚
TX Indicator
This lamp glows red when the radio is transmitting.
ƒ
BUSY Indicator
This lamp glows green when the channel is busy.
„
Liquid Crystal Display
The display include an 8-character alpha-numeric section showing channel and group
names, status and identity information, and error messages. Additional indicators on
the display show priority channel assignments and scan include / exclude selection.
A
POWER
†
•
8 Character Alpha-numeric Invertible Display
Channel Group Number
This channel on "INTERCOM" ListThis channel on "SELECTABLE TONE" List
This channel on "SCAN" List
Receiver MonitorThis channel on "PUBLIC ADDRESS" or
"CHANNEL RECALL" List
This channel on "HORN ALERT" List
This channel on
"OPTION" List
This channel on "AUX A/B/C" List
To Next Page
