Vertex PWC-1000 User Manual

PWC – 500/1000/1010/1500
PureWaterCooler
Copyright 2006 Vertex Water Products

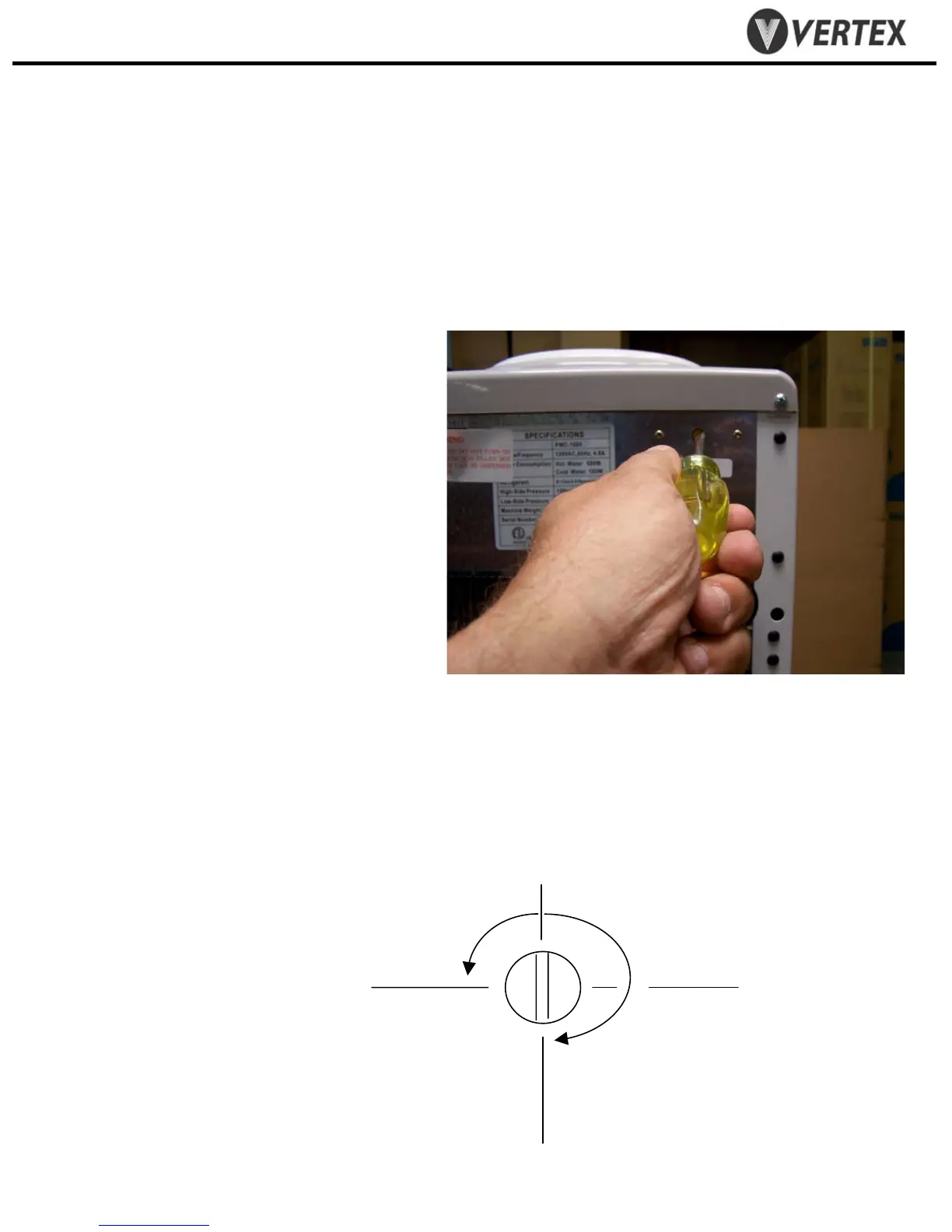

9.0 The cold water temperature adjustment
is located on the back of the cooler on
the right side. An expansion tube senses
temperature in the cold tank and open
and closes the thermostat.
9.1 The cold adjustment is a shaft with a
screw driver slot on the end.
9.2 To make the water colder, using a
screw driver, rotate the shaft clockwise.
For warmer water rotate the shaft
counter clockwise. There are stops on
the adjustment shaft. DO NOT force
the control shaft over the stop. If this
happens, it will be necessary to replace
the temperature controller
9. Cold Tank Temperature Adjustment
STOP
COLDEST
270º Travel
STOP
WARMEST
Normal Travel is 270º

Vertex PWC-1000 Specifications

General

Brand	Vertex
Model	PWC-1000
Category	Water Dispenser
Language	English
