Vertex VX-10 Service Manual

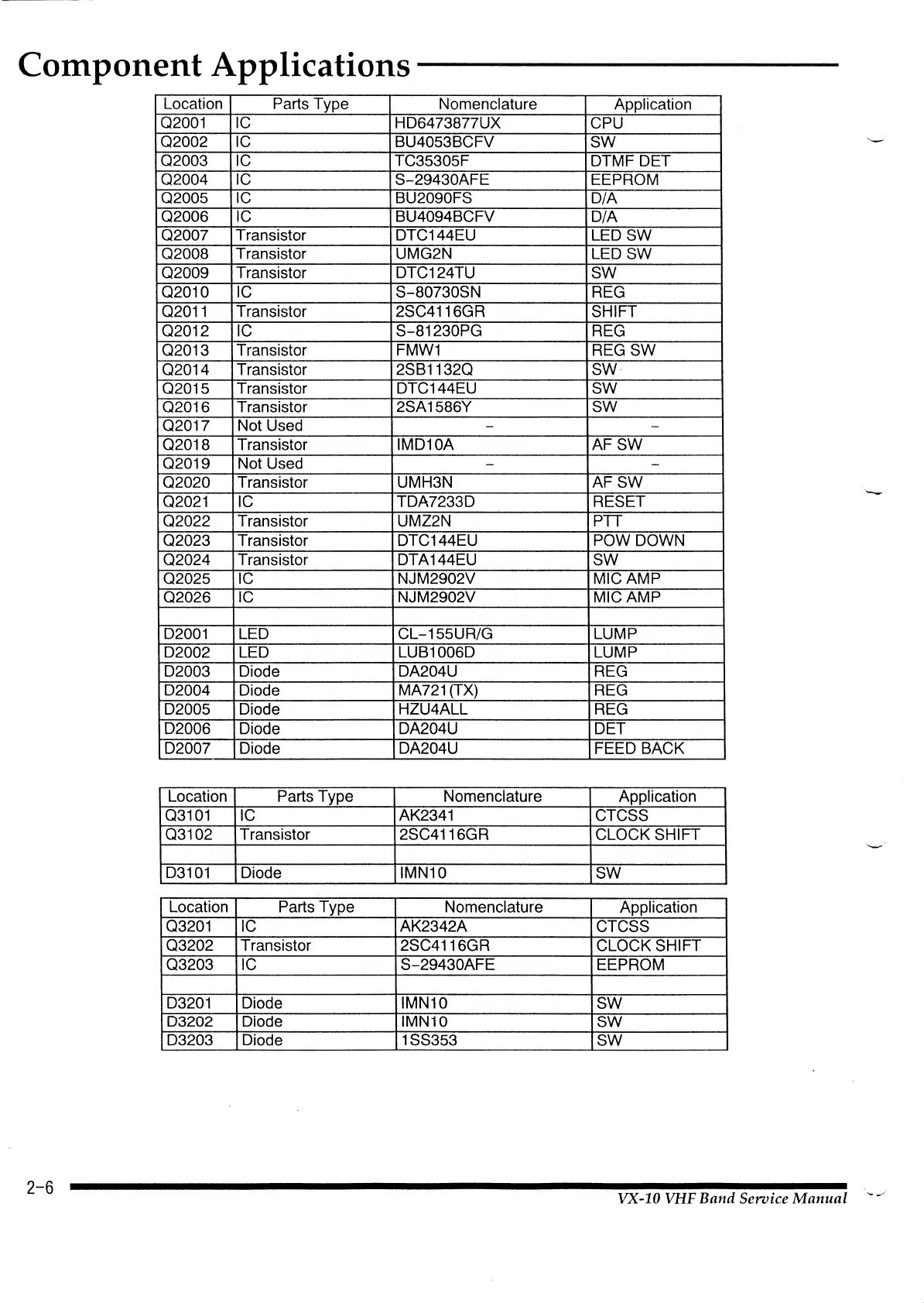

Component Applications-----------
Location
Parts Type Nomenclature
Application
02001
IC HD6473877UX
CPU
,02002
IC BU4053BCFV sw
'-
02003 IC TC35305F DTMF DET
02004 IC S-29430AFE
EEPROM
02005
IC
BU2090FS
D/A
02006 IC BU4094BCFV
D/A
02007 Transistor DTC144EU LEDSW
02008 Transistor UMG2N LEDSW
02009
Transistor DTC124TU sw
02010 IC S-80730SN
REG
02011 Transistor
2SC4116GR
SHIFT
02012 IC
S-81230PG
REG
02013 Transistor
FMW1
REGSW
02014 Transistor
2SB11320
sw
02015 Transistor DTC144EU
sw
02016 Transistor
2SA1586Y
sw
02017 Not Used
-
-
02018 Transistor
IMD10A
AFSW
02019 Not Used -
-
02020 Transistor UMH3N AFSW
02021 IC TDA7233D RESET
--
02022 Transistor UMZ2N
PTI
02023 Transistor
DTC144EU
POW DOWN
02024 Transistor DTA144EU sw
02025 IC NJM2902V MICAMP
02026 IC
NJM2902V
MICAMP
D2001 LED CL-155UR/G LUMP
D2002 LED LUB1006D LUMP
D2003 Diode
DA204U REG
D2004 Diode
MA721 (TX)
REG
D2005
Diode
HZU4ALL
REG
D2006 Diode DA204U DET
D2007 Diode DA204U FEED BACK
Location Parts Type Nomenclature Application
03101
IC
AK2341
CTCSS
03102 Transistor 2SC4116GR CLOCK SHIFT
~
D3101
Diode
IMN10
sw
Location Parts Type Nomenclature
Application
03201
IC AK2342A
CTCSS
03202 Transistor 2SC4116GR CLOCK SHIFT
03203 IC S-29430AFE
EEPROM
D3201 Diode IMN10
sw
D3202 Diode IMN10 sw
D3203 Diode 1SS353 sw
2-6
VX-10 VHF Band Service Manual ~-j
