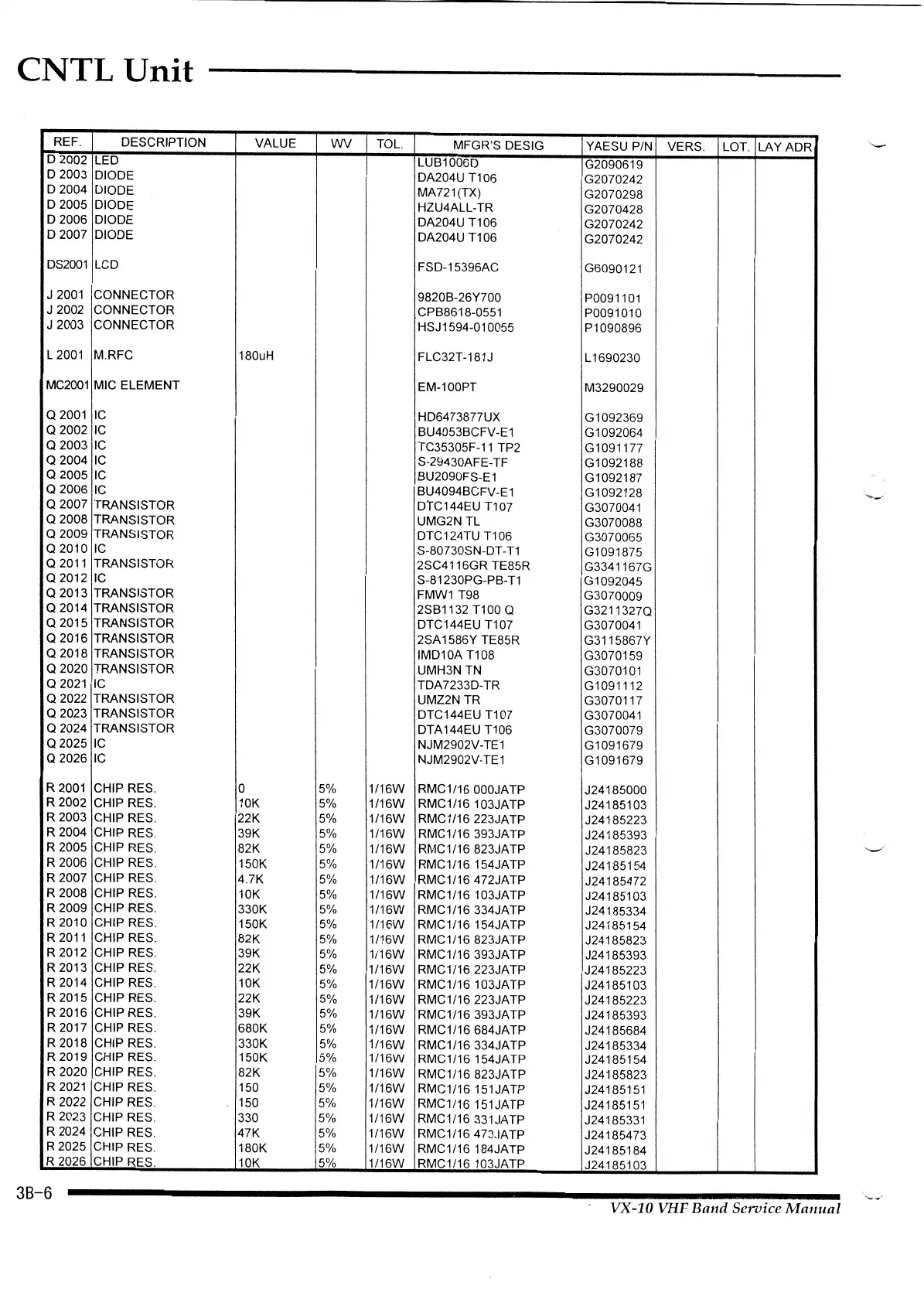

Vertex VX-10 Service Manual

CNTL Unit
REF.
DESCRIPTION
VALUE
wv
TOL.
MFGR'S DESIG
YAESU P/N
VERS.
LOT.
LAY ADR
D 2002
LED
LUB1006D
G2090619
D 2003
DIODE
DA204U T106
G2070242
D
2004
DIODE
MA721(TX)
G2070298
D 2005 DIODE
HZU4ALL-TR
G2070428
D 2006 DIODE
DA204U T106
G2070242
D 2007
DIODE
DA204U T106
G2070242
DS2001
LCD
FSD-15396AC
G6090121
J
2001
CONNECTOR
9820B-26Y700
P00911
01
J 2002
CONNECTOR
CPB8618-0551
P0091010
J 2003 CONNECTOR
HSJ 1594-010055
P1090896
L
2001 M.RFC
180uH
FLC32T-181J
L1690230
MC2001 MIG ELEMENT
EM-100PT
M3290029
Q
2001
IC
HD6473877UX
G1092369
Q
2002
IC
BU4053BCFV -E 1
G1092064
Q 2003
IC
TC35305F-11 TP2
G1091177
Q 2004
IC
S-29430AFE-TF
G1 092188
Q 2005
IC
BU2090FS-E1
G1092187
Q 2006
IC
BU4094BCFV -E 1
G1 092128
Q 2007
TRANSISTOR
DIC144EU T107
G3070041
,.,. __ _
Q 2008
TRANSISTOR
UMG2N TL
G3070088
Q 2009
TRANSISTOR
DTC124TU T106
G3070065
Q 2010
IC
S-80730SN-DT-T1
G1091875
Q
2011 TRANSISTOR
2SC4116GR TE85R
G3341167G
Q 2012
IC
S-81230PG-PB-
T1
G1092045
Q 2013 TRANSISTOR
FMW1 T98
G3070009
Q 2014 TRANSISTOR
2SB1132 T100 Q
G3211327Q
Q
2015
TRANSISTOR
DTC144EU T107
G3070041
Q 2016
TRANSISTOR
2SA 1586Y TE85R
G3115867Y
Q
2018
TRANSISTOR
IMD10A T108
G3070159
Q 2020
TRANSISTOR
UMH3N TN
G30701
01
Q 2021
IC
TDA7233D-TR
G1091112
Q
2022
TRANSISTOR
UMZ2N TR
G3070117
Q 2023 TRANSISTOR
DTC144EU T107
G3070041
Q 2024
TRANSISTOR
DTA144EU T106
G3070079
Q 2025
IC
NJM2902V-TE 1
G1091679
Q
2026
IC
NJM2902V-TE1
G1091679
R
2001
CHIP RES.
0
5%
1/16W RMC1/16 OOOJATP
J24185000
R 2002 CHIP RES.
10K
5%
1/16W RMC1/16 103JATP
J24185103
R 2003
CHIP RES.
22K
5%
1/16W RMC1/16 223JATP
J24185223
R 2004
CHIP RES.
39K
5%
1/16W RMC1/16 393JATP
J24185393
R 2005
CHIP RES.
82K
5%
1/16W
RMC1/16 823JATP
J24185823
'~
R 2006
CHIP RES.
150K
5%
1/16W
RMC1/16 154JATP
J24185154
R 2007
CHIP RES.
4.7K
5%
1/16W RMC1/16 472JATP
J24185472
R 2008
CHIP RES.
10K
5%
1/16W
RMC1/16 103JATP
J24185103
R 2009 CHIP RES.
330K
5% 1/16W
RMC1/16 334JATP
J24185334
R 2010
CHIP RES.
150K
5%
1/16W
RMC1/16 154JATP
J24185154
R
2011
CHIP RES.
82K
5%
1/16W RMC 1/16 823JATP
J24185823
R 2012
CHIP RES.
39K
5% 1/16W
RMC1/16 393JATP
J24185393
R 2013 CHIP RES.
22K
5%
1/16W
RMC1/16 223JATP
J24185223
R 2014 CHIP RES.
10K
5%
1/16W
RMC1/16 103JATP
J24185103
R
2015
CHIP
RES.
22K
5%
1/16W RMC1/16 223JATP
J24185223
R
2016 CHIP
RES.
39K
5%
1/16W
RMC1/16 393JATP
J24185393
R 2017
CHIP RES.
680K
5%
1/16W
RMC1/16 684JATP
J24185684
R 2018
CHIP RES.
330K
5%
1/16W
RMC1/16 334JATP
J24185334
R
2019
CHIP RES.
150K
5%
1/16W
RMC1/16 154JATP
J24185154
R 2020 CHIP RES.
82K
5%
1/16W
RMC1/16 823JATP
J24185823
R
2021
CHIP RES.
150
5%
1/16W
RMC1!16 151JATP
J24185151
R 2022
CHIP RES.
150
5%
1/16W
RMC1/16 151JATP
J24185151
R 2023
CHIP RES.
330
5% 1/16W
RMC1/16 331JATP
J24185331
R 2024
CHIP RES.
47K
5%
1/16W
RMC1/16 473JATP
J24185473
R 2025
CHIP RES.
180K
5%
1/16W
RMC 1/16 184JATP
J24185184
R 2026
CHIP
RES.
10K
5%
1/16W
RMC1/16 103JATP
J24185103
38-6
----- ... -
VX-10 VHF Band Service Manual
