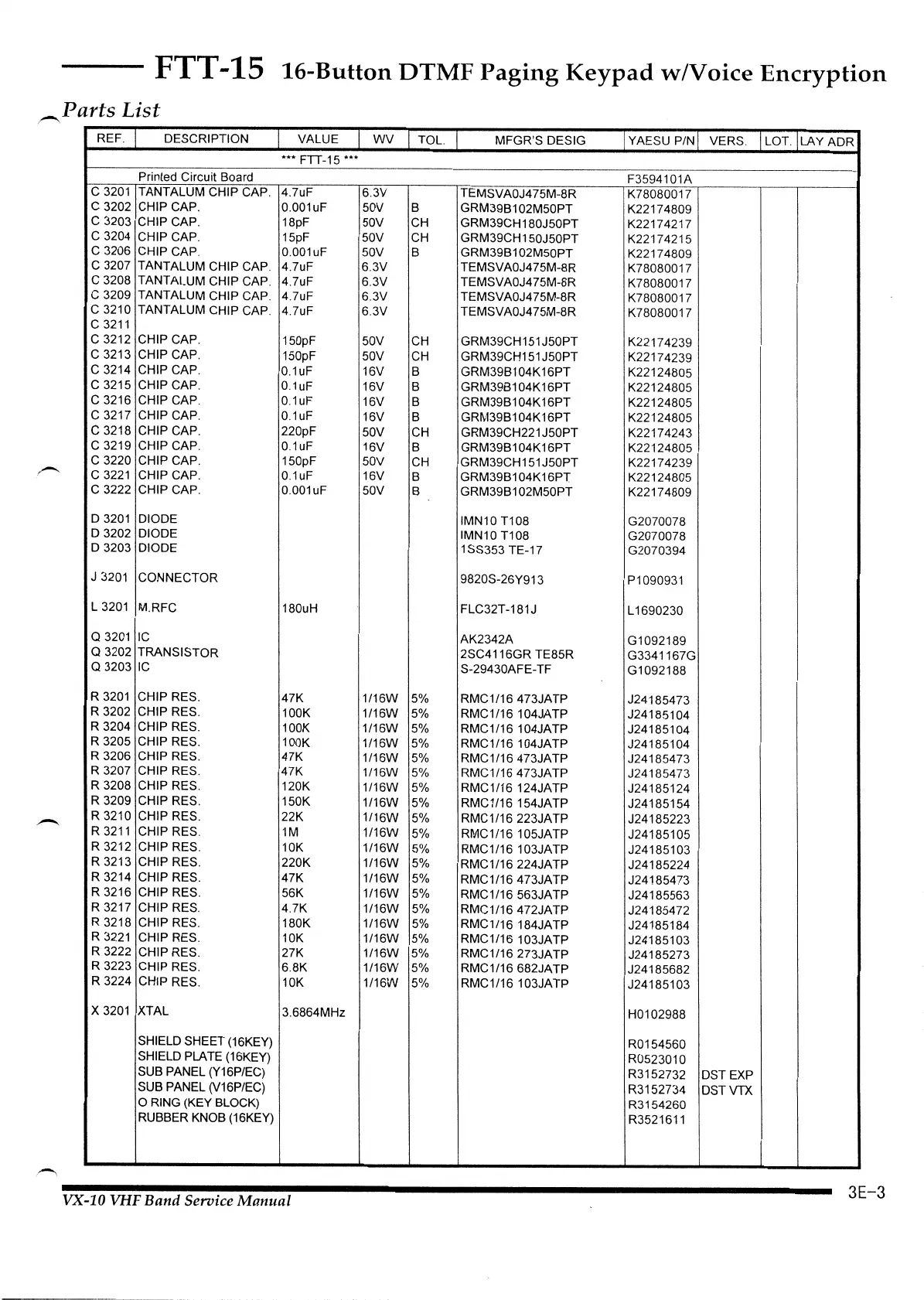

FTT -15 16-Button DTMF Paging Keypad w/Voice Encryption
~Parts List
REF.
DESCRIPTION
I
VALUE
I wv I TOL. I
MFGR'S DESIG
I YAESU P/N I VERS. I LOT. LAy ADR
••• FTT-15 •••
Printed Circuit Board
F3594101A
c 3201
TANTALUM CHIP CAP.
4.7uF
6.3V
TEMSVAOJ475M-8R
K78080017
c 3202 CHIP CAP.
0.001uF
50V B
GRM39B 1 02M50PT
K22174809
c 3203 CHIP CAP.
18pF
50V CH
GRM39CH 180J50PT
K22174217
c 3204
CHIP CAP.
15pF
50V
CH
GRM39CH150J50PT
K22174215
c 3206 CHIP CAP.
0.001uF
50V
B
GRM39B 1 02M50PT
K22174809
c 3207
TANTALUM CHIP CAP.
4.7uF
6.3V
TEMSVAOJ475M-8R
K78080017
c 3208
TANTALUM CHIP CAP.
4.7uF
6.3V
TEMSVAOJ4 75M-8R
K78080017
c 3209
TANTALUM CHIP CAP.
4.7uF
6.3V
TEMSVAOJ475M-8R
K78080017
c 3210
TANTALUM CHIP CAP.
4.7uF
6.3V
TEMSVAOJ4 75M-8R
K78080017
c 3211
c 3212 CHIP CAP.
150pF
50V CH
GRM39CH151 J50PT
K22174239
c 3213 CHIP CAP.
150pF
50V CH
GRM39CH151J50PT
K22174239
c 3214
CHIP CAP.
0.1uF
16V
B
GRM39B104K16PT
K22124805
c 3215 CHIP CAP.
0.1uF
16V B
GRM39B 1 04K 16PT
K22124805
c 3216 CHIP CAP.
0.1uF
16V B
GRM39B104K16PT
K22124805
c 3217
CHIP CAP.
0.1uF
16V
B
GRM39B104K16PT
K22124805
c 3218 CHIP CAP.
220pF
50V CH
GRM39CH221 J50PT
K22174243
c 3219 CHIP CAP.
0.1uF
16V
B
GRM39B104K16PT
K22124805
~
c 3220
CHIP CAP.
150pF
50V
CH
GRM39CH
151 J50PT
K22174239
c 3221 CHIP CAP.
0.1 uF
16V
B
GRM39B104K16PT
K22124805
c 3222 CHIP CAP.
0.001uF
50V B
GRM39B1 02M50PT
K22174809
D
3201 DIODE
IMN10 T108
G2070078
D 3202 DIODE
IMN10 T108
G2070078
D 3203
DIODE
1SS353 TE-17
G2070394
J 3201
CONNECTOR
9820S-26Y913
P1090931
L 3201
M.RFC
180uH
FLC32T-181J
L1690230
Q 3201
IC
AK2342A
G1092189
Q 3202
TRANSISTOR
2SC4116GR TE85R
G3341167G
Q 3203
IC
S-29430AFE-TF
G1092188
R 3201
CHIP RES.
47K
1/16W 5%
RMC1/16 473JATP
J24185473
R3202
CHIP RES.
100K
1/16W
5%
RMC1/16 104JATP
J24185104
R3204
CHIP RES.
100K
1/16W
5%
RMC1/16 104JATP
J24185104
R 3205
CHIP RES.
100K
1/16W 5%
RMC1/16 104JATP
J24185104
R 3206
CHIP RES.
47K
1/16W
5%
RMC1/16 473JATP
J24185473
R 3207 CHIP RES.
47K
1/16W
5%
RMC1/16 473JATP
J24185473
R 3208 CHIP RES.
120K
1/16W
5%
RMC1/16 124JATP
J24185124
R 3209 CHIP RES.
150K
1/16W
5%
RMC1/16 154JATP
J24185154
-
R 3210
CHIP RES.
22K
1/16W
5%
RMC1/16 223JATP
J24185223
R
3211
CHIP RES.
1M
1/16W
5%
RMC1/16 105JATP
J24185105
R 3212
CHIP RES.
10K
1/16W
5%
RMC1/16 103JATP
J24185103
R 3213 CHIP RES.
220K
1/16W
5%
RMC1/16 224JATP
J24185224
R 3214
CHIP RES.
47K
1/16W 5%
RMC1/16 473JATP
J24185473
R 3216
CHIP RES.
56K
1/16W
5%
RMC1/16 563JATP
J24185563
R 3217
CHIP RES.
4.7K
1/16W
5%
RMC1/16 472JATP
J24185472
R 3218
CHIP RES.
180K
1/16W
5%
RMC1/16 184JATP
J24185184
R
3221
CHIP RES.
10K
1/16W
5%
RMC1/16 103JATP
J24185103
R 3222
CHIP RES.
27K
1/16W
5%
RMC1/16 273JATP
J24185273
R 3223 CHIP RES.
6.8K
1/16W
5%
RMC1/16 682JATP
J24185682
R 3224 CHIP RES.
10K
1/16W
5%
RMC1/16 103JATP
J24185103
X 3201 XTAL
3.6864MHz
H0102988
SHIELD SHEET (16KEY)
R0154560
SHIELD PLATE (16KEY)
R0523010
SUB PANEL (Y16P/EC)
R3152732
DST EXP
SUB PANEL (V16P/EC)
R3152734
DSTVTX
0 RING (KEY BLOCK)
R3154260
RUBBER KNOB (16KEY)
R3521611
,.-,
VX-10 VHF Band Service Manual
3E-3
