34

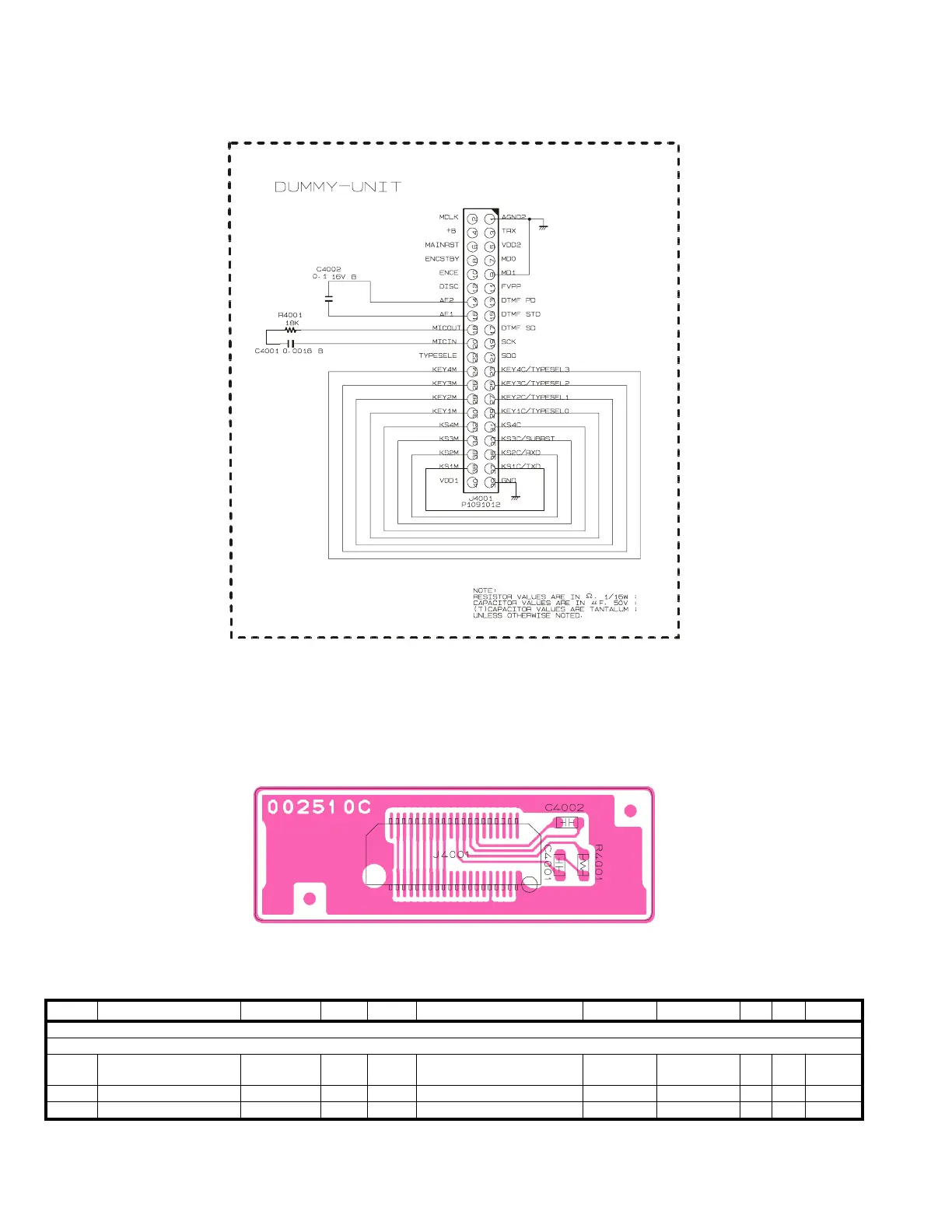

DUMMY Unit
Parts List
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
REF.
LOT.
SIDE LAY ADR
PCB with Components CB2731001
Printed Circuit Board FR002510C 1-
C 4001 CHIP CAP. 0.0018uF 50V B GRM39B182M50PT K22174812 1-
C 4002 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1-
J 4001 CONNECTOR AXK5S40035P P1091012 1-
R 4001 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1-
Circuit Diagram
Parts Layout
