Example of medium settings
Operating your camera
Introduction
The camera payload is operated from the Video Control Station (VCS). The VCS is a touch-screen laptop
that is running the CCA2 application to connect to the camera system. The VCS laptop is equipped with a
joystick to control the camera.

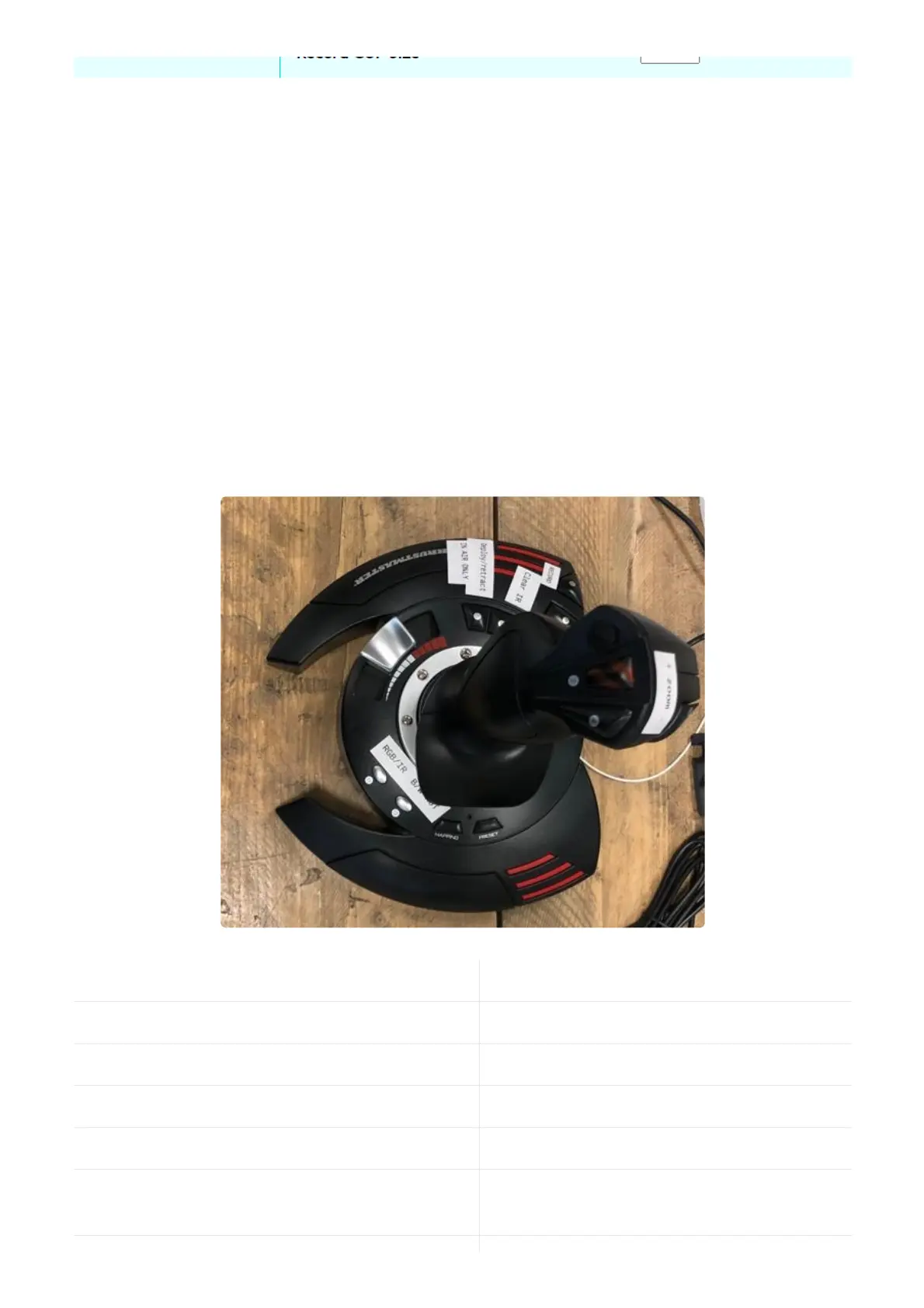

The joystick
The joystick has several buttons numbered from 1 to 14. All buttons are labeled with their function.
Button Function
2 Zoom in
4 Zoom out
5 Start/Stop onboard recording
9 Calibrate (clear) IR video
10
Deploy/Retract camera (ONLY PERFORM THIS
WHILE IN AIR)
