Vertiv Liebert CW - Page 74

REV : 0
REV DATE : 2/19
DPN004952
Page :1 /1
Form No.: DPN001040_REV4

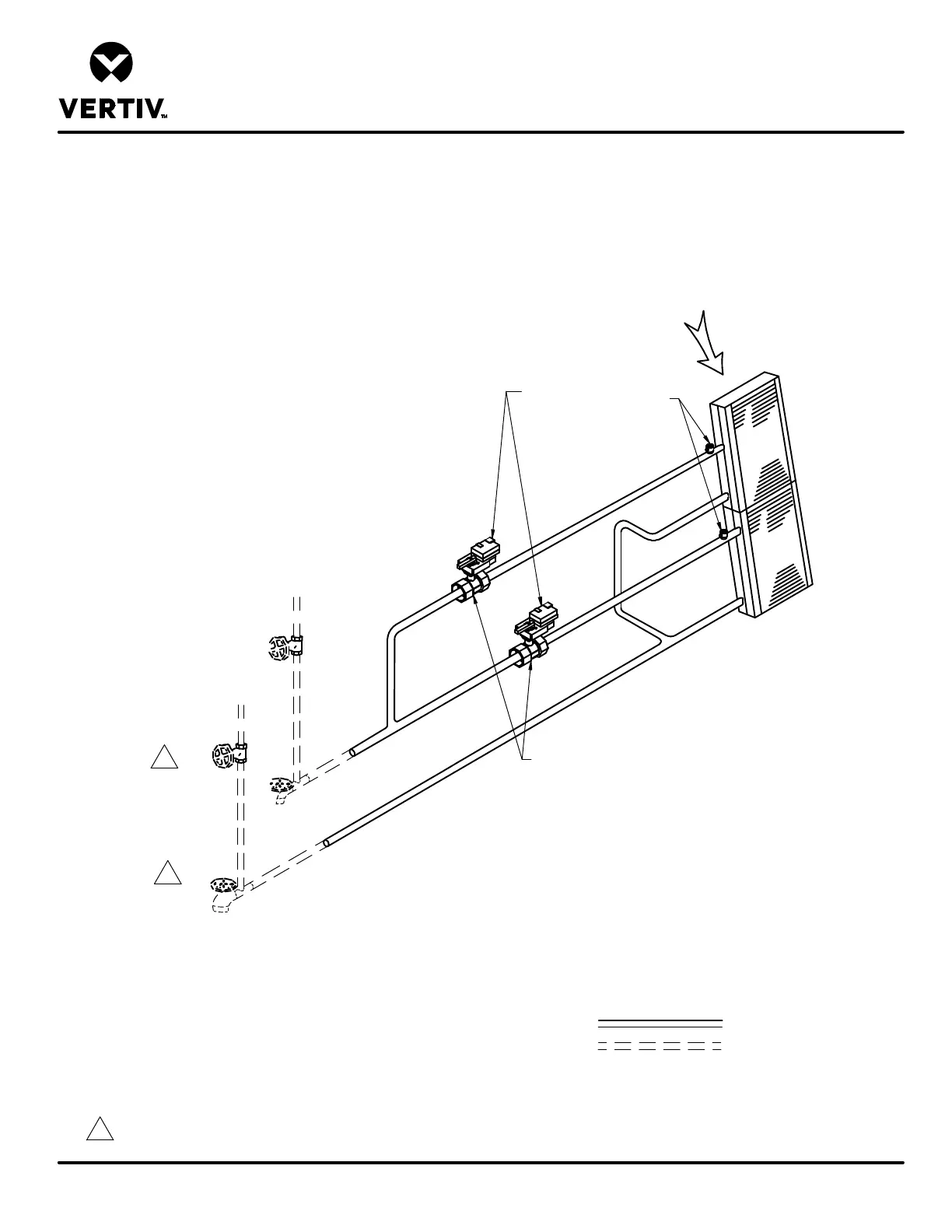

GENERAL ARRANGEMENT DIAGRAM
LIEBERT CW
CW305, 375, 415
Chilled
Water
Return
Chilled
Water
Supply
Off
Valves
Bibs
Valve
Actuator
Air Flow
FACTORY PIPING
FIELD PIPING
Bleed Valve
Shut
Hose
Notes:
1. Components are not supplied by Liebert, but are required for proper circuit operation and maintenance.
1
1
Chilled
Water
Coil
2-Way Chilled
Water Valve
