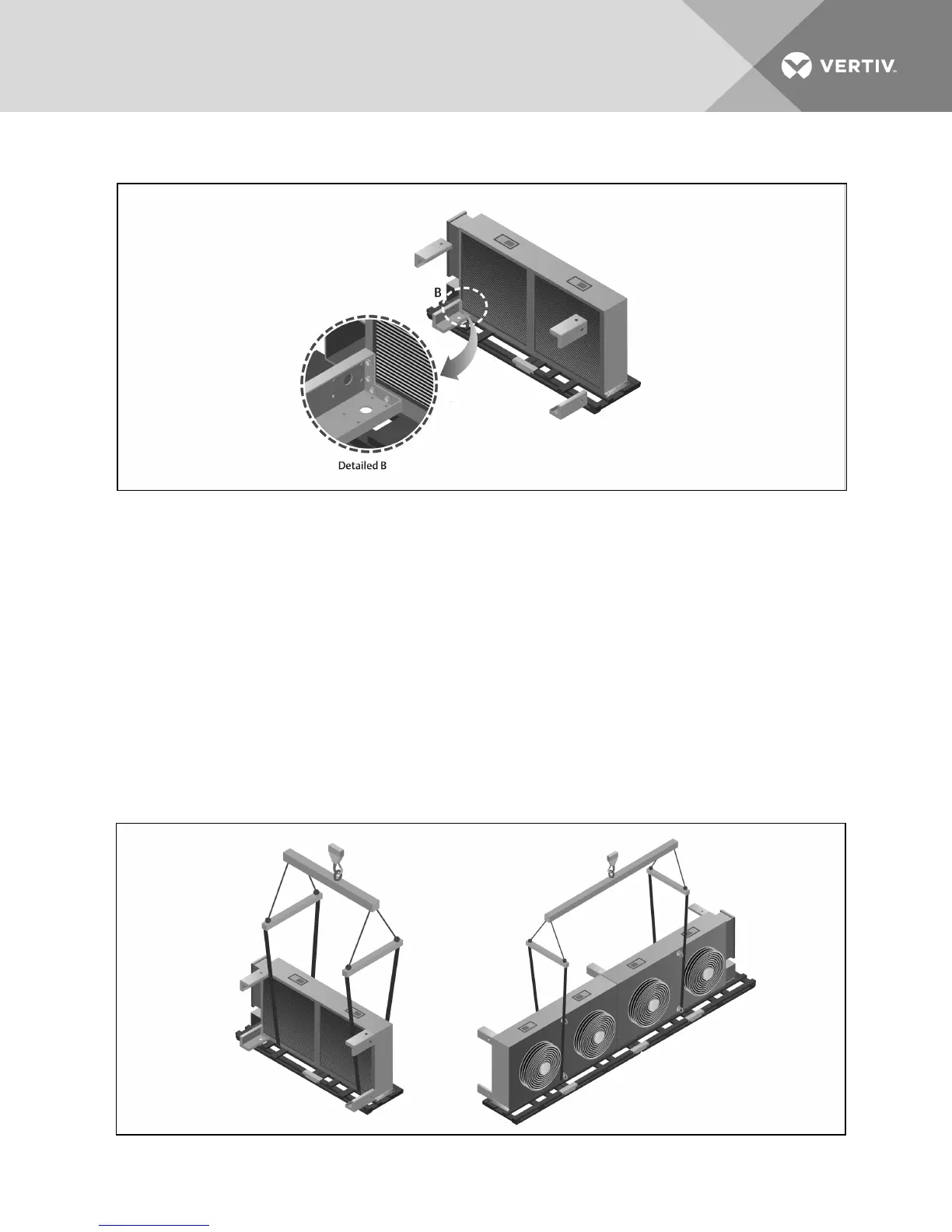

Figure 3.4 Attaching legs to condensers
2. Place slings around the unit between the unit and the top deck boards of the skid as shown in
Figure 3.5 below:
• 1-fan and 2-fan units: against the inside of the attached legs.
• 3-fan and 4-fan units: against the outside of the attached eye bolts.
3. Use spreader bars, a lift beam and a crane to lift the unit off the skid. Make sure spreader bars
are wider than the unit.
NOTICE
Risk of improper lifting. Can cause equipment damage.
Make sure that the spreader bars wider are than the unit. If the spreader bars are too short, the slings may
crush the unit.
Figure 3.5 Securing slings to condensers for lifting off skid
Vertiv | Liebert® MC™ Installer/User Guide | 31
