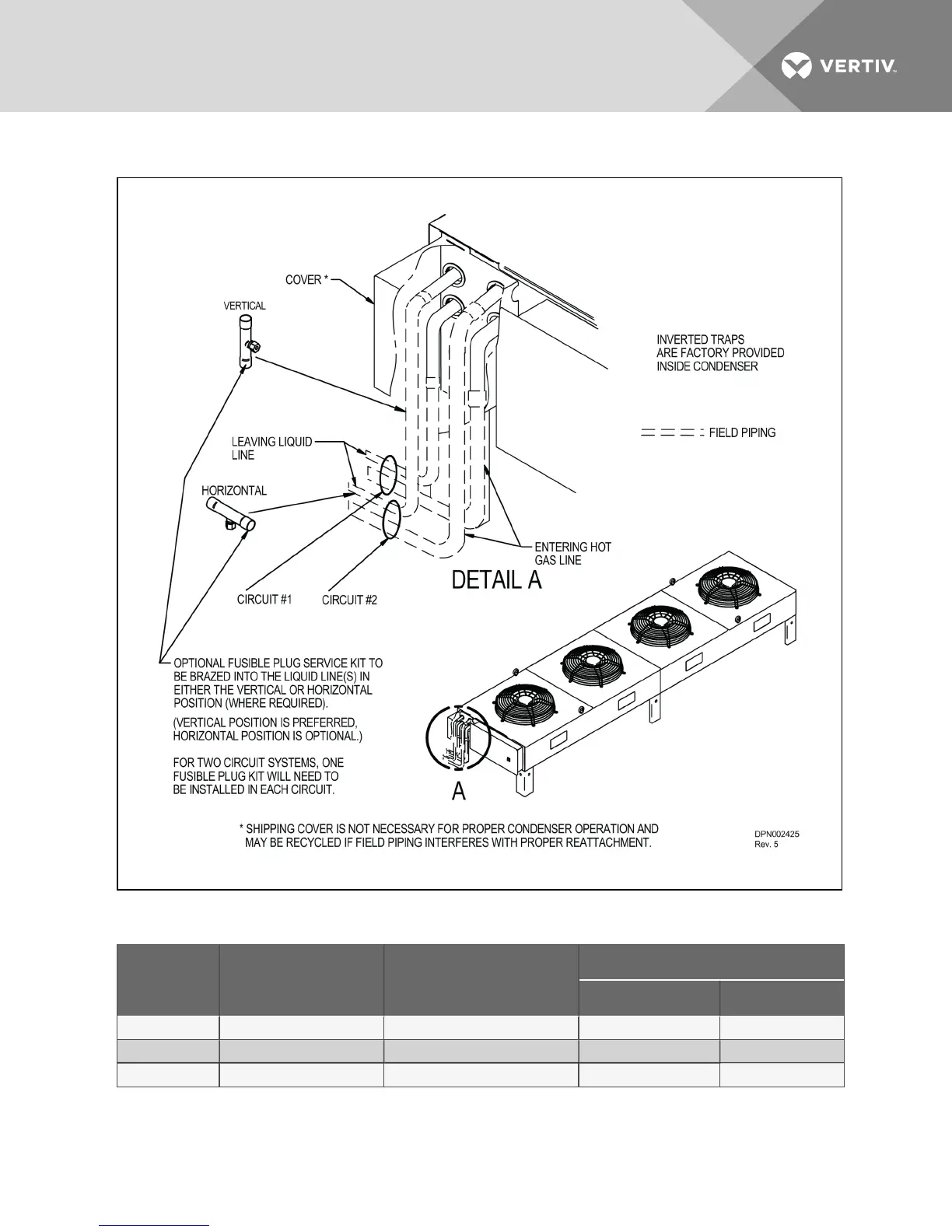

Figure 5.9 Piping: dimensions—Dual circuit two-fan and four-fan units
Model # Number of Fans Condenser Circuits
Connection Sizes, OD, in
Hot Gas Line Liquid Line
MCS056 2 2 7/8 5/8
MCM080 2 2 7/8 5/8
MCL110 2 2 1-1/8 7/8
Table 5.3 Piping: dimensions—Dual-circuit, two-fan and four-fan units
Vertiv | Liebert® MC™ Installer/User Guide | 65
