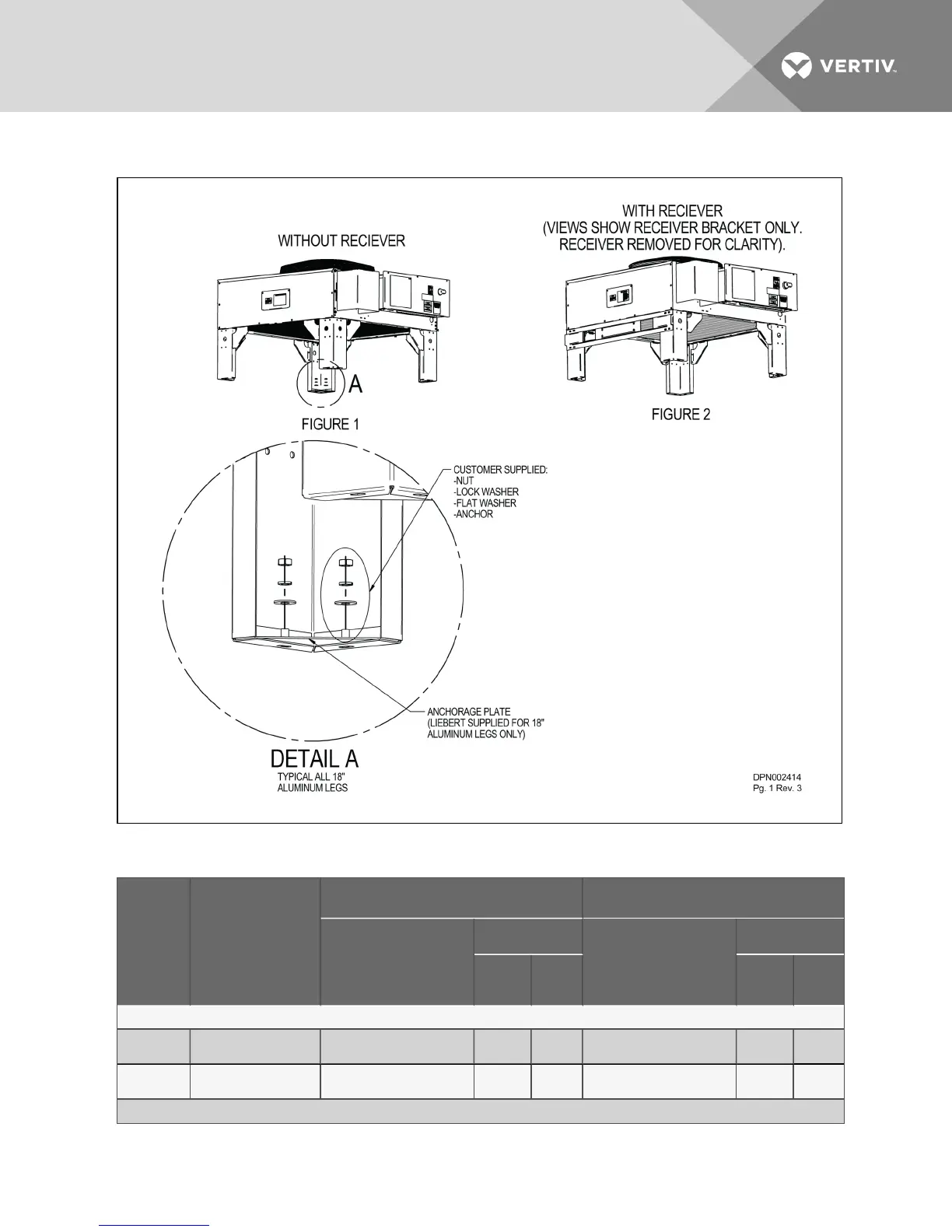

Figure 10.1 Seismic anchorage data for one-fan models
Models
Figure # in Figure 10.1
above
Importance Factor Iρ= 1.0 Importance Factor Iρ= 1.5
Maximum Compressive
Reaction lb
Maximum Anchor
Maximum Compressive
Reaction lb
Maximum Anchor
Tensile
lb
Shear
lb
Tensile
lb
Shear
lb
MCS028
Without
Receiver
Figure 1 37 14 14 47 24 21
With
Receiver
Figure 2 43 15 23 56 27 35
MCM040
Table 10.1 Seismic anchorage loads for one-fan models
