Vertiv | NetSure Rectifier Module User Manual (UM1R482000e / 11BU1360YY) | Rev. J

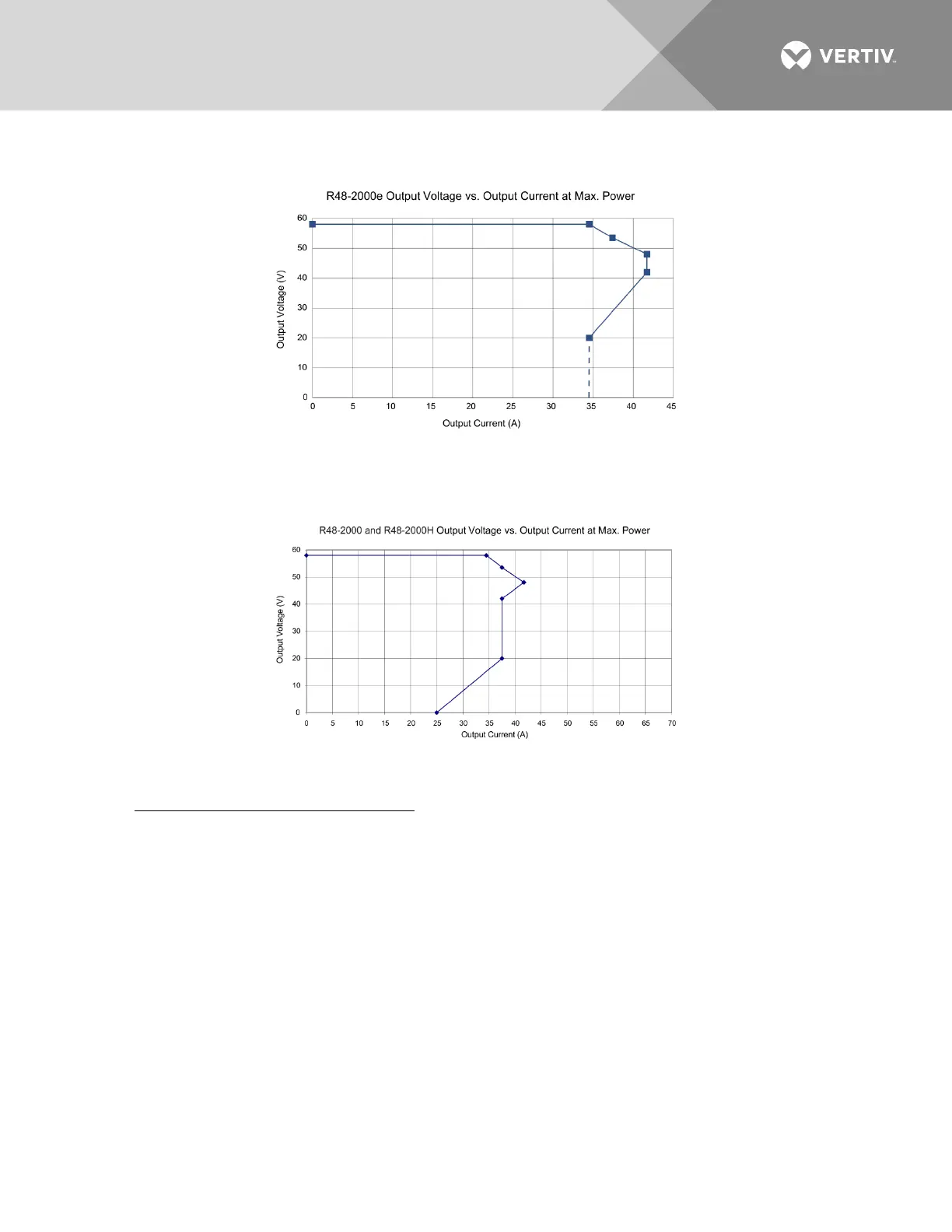

Figure 1:
Output Voltage vs. Output Current [R48-2000e (1R482000e)]
Figure 2:
Output Voltage vs. Output Current [R48-2000 (1R482000) and R48-2000H (1R482000H)]
• Power Derating Based on Input Voltage: The rectifier power varies with changes in input voltage and
output voltage. It uses an advanced power limitation method. The lower input threshold is 85 VAC. The
rectifier can provide its maximum rated power (2000W) as long as the input voltage is within the range
of 176 to 300 VAC. Below 176 VAC, and down to 85 VAC, the rectifier will continue to operate normally
but will be in a power derating mode. The relationship between the output power and input voltage is
illustrated in Figure 3 and Figure 4.
