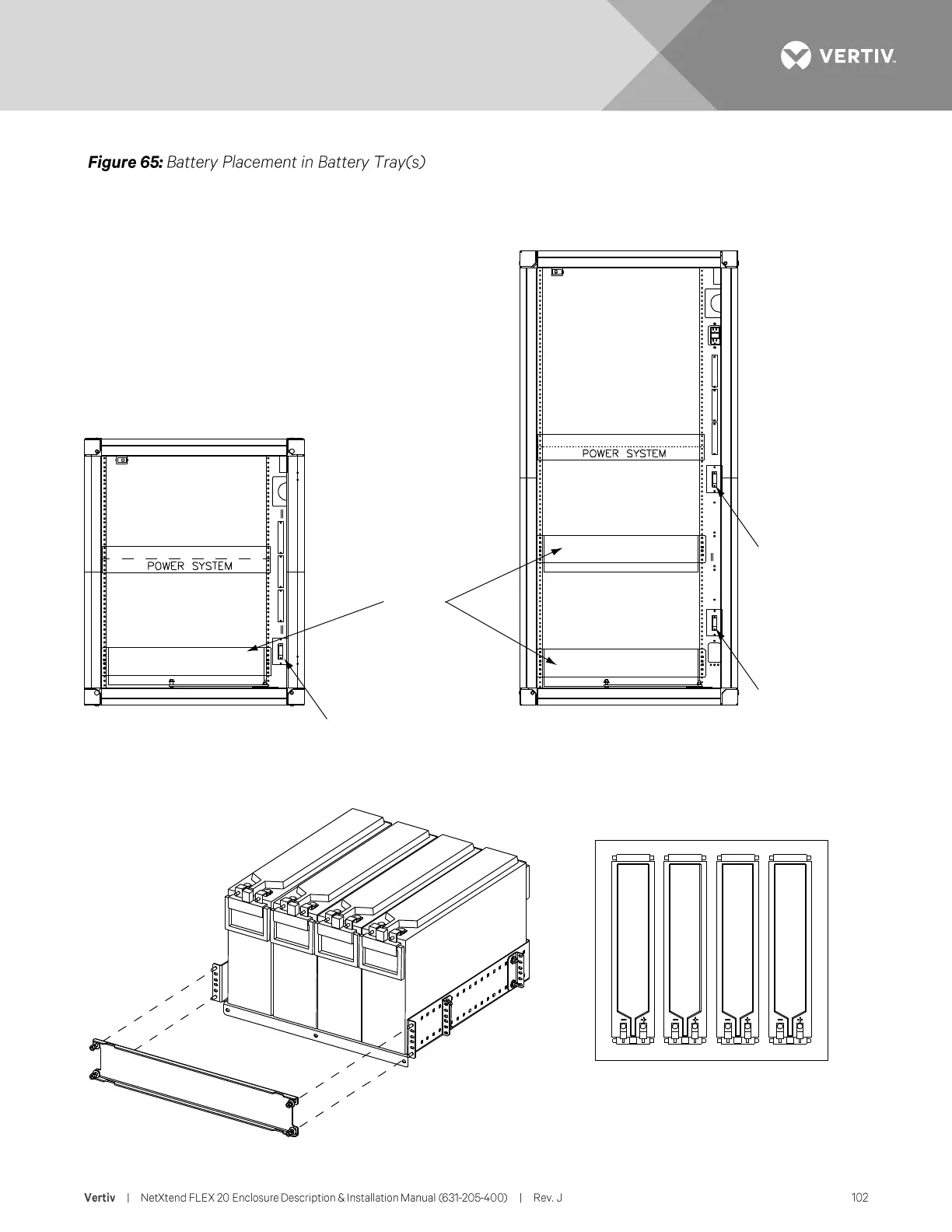

Top View

Internal Battery Tray

front

INTERNAL BATTERY TRAY

32” DEEP , NO SIDE CHAMBER (30” WIDE) ENCLOSU R E ONLY

Battery Disconnect

Circuit Breaker

Internal

Battery Tray

Front View

Battery String(s) Battery String(s)

Battery String(s)

Front View

Battery Disconnect

Circuit Breaker

Battery Disconnect

Circuit Breaker

Internal

Battery Tray

(one, two, or three

trays per enclosure

allowed, depending

on enclosure height)

Note:

-48VDC systems have one (1)

battery string per tray.

+24VDC systems have two (2)

battery strings per tray.
